GAM336AT + ZM600 Inline PCB Routing and Tray Loading Solution is becoming an important consideration for electronics manufacturers that are moving toward smarter and more automated production lines.
In many factories, PCB routing itself is no longer the biggest challenge.
The real challenge appears after cutting.
How can manufacturers maintain stable production when panel loading, PCB transfer, sorting, and material handling all require human involvement?
For high-volume electronics production, every manual step creates possible variation.
Operators may need to adjust materials.
Finished boards may wait for the next process.
Production data becomes harder to track.
This is why more manufacturers are exploring integrated solutions that combine PCB depaneling with automated handling.
🔍 Why Smart Factory Production Requires More Than Just PCB Cutting
Electronics manufacturing has changed rapidly.
Products such as:
- Smart devices
- Communication modules
- Consumer electronics
- IoT products
- Compact electronic assemblies
are becoming smaller, more functional, and produced in larger quantities.
This creates new production requirements:
- Higher output capacity
- Better process consistency
- Less manual intervention
- Faster product changeover
- More intelligent material flow
A traditional standalone router machine can provide accurate PCB separation.
However, when production volume increases, manufacturers often discover another limitation.
The cutting process may be stable, but the surrounding handling process becomes the bottleneck.
A smart factory does not only need faster machines.
It needs a connected production workflow.
⚠️ Common Challenges in High-Volume PCB Manufacturing
Many manufacturers experience similar problems when expanding production.
Production Efficiency Issues
A factory may successfully produce several thousand PCB panels every month.
But when customer demand increases:
- Manual loading becomes slower
- Operators spend more time transferring materials
- Production balance becomes difficult
- Work-in-progress increases
The equipment is not necessarily the problem.
The problem is that individual processes are not connected.
Quality Consistency Challenges
PCB quality can be affected by small variations.
Examples include:
- Incorrect board positioning
- Different operator handling methods
- Unstable transfer processes
- Manual sorting errors
These issues may lead to:
- Inconsistent PCB edges
- Increased inspection workload
- Additional rework costs
For consumer electronics, even a small quality variation can become expensive at large production volumes.
⚙️ How GAM336AT + ZM600 Builds a More Complete Production Flow
の GAM336AT + ZM600 system combines automatic PCB routing, tray loading, and intelligent material handling into one continuous workflow.
Instead of treating PCB separation as an isolated process, it connects multiple production steps.
The workflow includes:
Automatic Rail Width Adjustment
The system can automatically adjust rail width according to different PCB sizes.
This helps reduce manual adjustment time during product changes.
Automatic Board Loading
PCB panels are automatically transferred into the routing process.
This reduces operator dependency and improves production continuity.
Fiducial Mark Recognition and Automatic Cutting
The vision system recognizes fiducial marks and helps maintain cutting accuracy.
This is especially useful for manufacturers producing multiple PCB models.
Automatic Capping and Scrap Disposal
After processing, the system supports automatic protection and scrap handling.
This helps maintain a cleaner production environment.
Shuttle Fixture and Automatic Plate Arrangement
The shuttle fixture improves production organization.
Finished boards can be arranged automatically for the next process.
AGV Intelligent Material Handling
For smart factories, material movement is becoming increasingly important.
The integration of AGV handling allows:
- Automatic loading
- Automatic unloading
- Intelligent transportation between processes
The goal is not simply reducing labor.
The goal is creating a more predictable manufacturing system.
📊 Comparing Different PCB Production Approaches
| Solution | Advantages | Limitations | Suitable Applications |
|---|---|---|---|
| Manual Depaneling | Low investment | Low efficiency, higher labor dependency | Small volume production |
| Standalone Router Machine | Flexible and accurate | Requires manual handling | Medium production volume |
| Automatic Router + Tray Loading | Stable workflow, higher efficiency | Higher initial investment | High-volume electronics production |
| Fully Integrated Smart Factory Line | Maximum automation capability | Requires production planning | Large-scale intelligent manufacturing |
There is no universal solution for every factory.
The correct choice depends on:
- Monthly production volume
- PCB complexity
- Labor availability
- Product lifecycle
- Future automation requirements
A smaller factory may not need complete automation.
But for continuous high-volume production, connected equipment often creates more value than individual machines.
💰 Looking Beyond Equipment Investment
A common purchasing mistake is focusing only on machine price.
In reality, manufacturers should evaluate the total production cost.
Hidden costs include:
- Operator labor
- Material transfer time
- Production waiting time
- Quality inspection
- Rework caused by handling errors
- Production interruptions
For example:
A factory producing 50,000 PCB panels monthly may save more from workflow optimization than from purchasing a lower-cost machine.
The value comes from improving the entire process.
Not only the cutting speed.

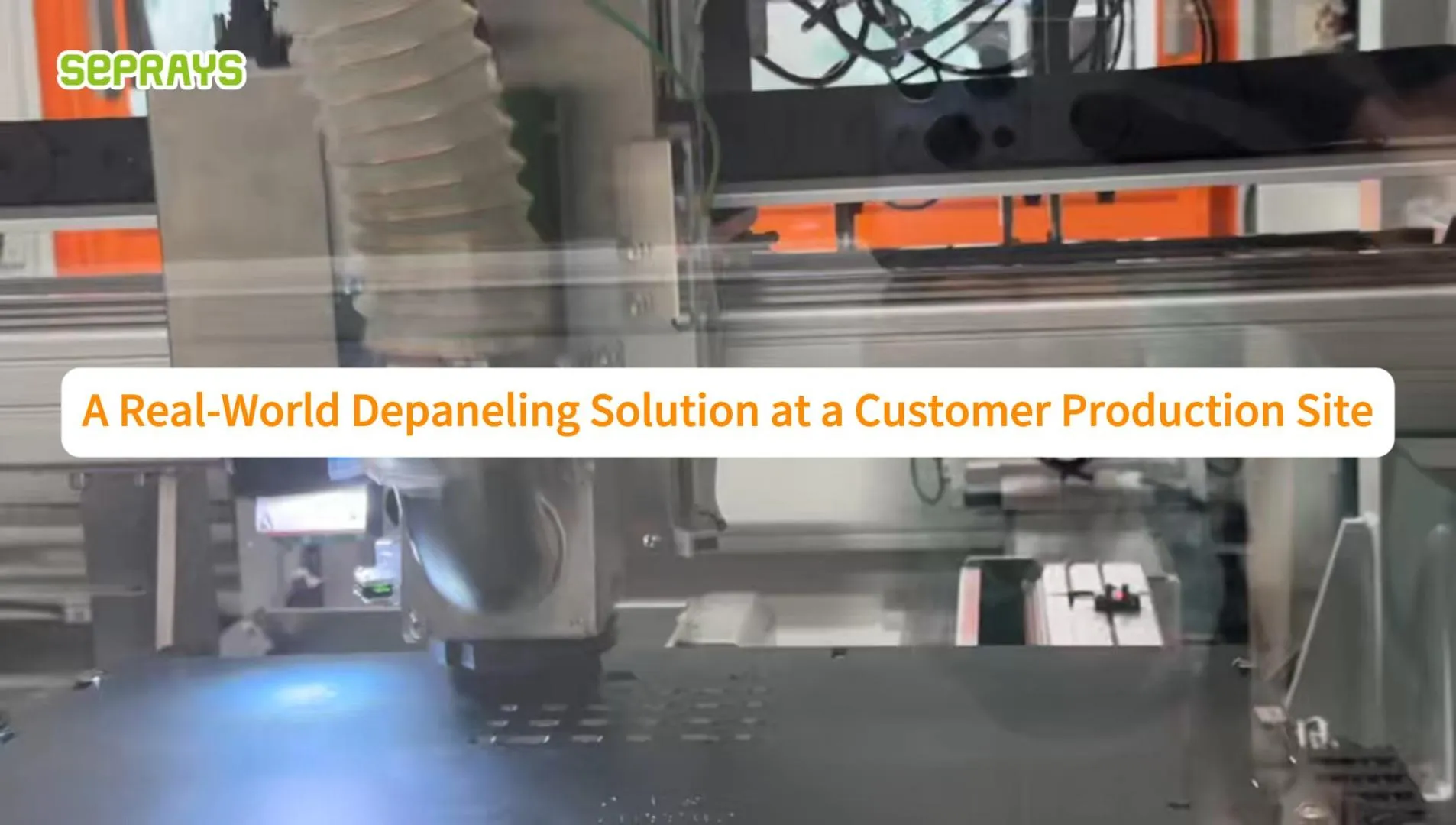

🌍 Real Application Example: Semiconductor Electronics Manufacturer Improves Production Flow
An overseas semiconductor electronics manufacturer producing communication modules faced a common challenge.
The PCB routing quality was acceptable.
However, production efficiency was affected by manual loading, board transfer, and sorting.
Engineers found that the cutting process itself was not the bottleneck.
The material flow between processes was limiting output.
After evaluating automation requirements, the manufacturer introduced a Seprays automated PCB routing and handling solution based on GAM336AT technology.
After process optimization:
- Manual intervention was reduced
- Production flow became more stable
- PCB transfer efficiency improved
- Finished boards were arranged more consistently
- Production scheduling became easier
The key lesson was not simply adding automation.
It was connecting the right processes.
A smart factory is built step by step.
🧠 What Engineers Should Consider Before Choosing an Inline Solution
Before investing in an automated PCB routing system, manufacturers should ask:
How many PCB panels are produced daily?
High-volume production usually benefits more from automation.
How many product models are running?
Factories with frequent model changes need flexible programming.
Is future MES or AGV integration planned?
Equipment should support future expansion.
Where are the real production bottlenecks?
Sometimes the cutting process is not the problem.
Material flow may be the bigger challenge.
Why Choose Seprays Group?
Choosing PCB manufacturing equipment is not only about specifications.
It is about long-term process experience.
With more than 30 years of development, Seprays Group has focused on PCB/FPC depaneling technology and intelligent manufacturing solutions.
Seprays Group has been dedicated to PCB/FPC depaneling technology, providing a full range of solutions—milling-cutter depanelers, laser depanelers, V-groove depanelers, punching depanelers, and automated handling systems.
Our equipment is trusted by leading manufacturers, including Foxconn, Flextronics, State Grid, Luxshare, Compal, Wistron, China Electronics, Quanta, CRRC, China Aerospace, OPPO, ZTE, and Bosch.
These solutions are used in factories across China and worldwide, supporting industries including consumer electronics, automotive electronics, semiconductor-related products, communication equipment, and smart manufacturing.
Seprays continues to combine manufacturing experience, process optimization, and automation technology to help customers build more stable PCB production systems.
If you are evaluating PCB depaneling automation or looking for a customized production solution, please contact us.
WhatsApp: +8618929266433
Eメール: sales@seprays.com
FAQ
1. What is the main advantage of the GAM336AT + ZM600 solution?
The main advantage is combining PCB routing and automated material handling into one workflow, reducing manual transfer steps and improving production consistency.
2. Is the GAM336AT suitable for high-volume consumer electronics production?
Yes. It is designed for manufacturers that require stable PCB routing performance, automation capability, and efficient production workflows.
3. Can the system support different PCB models?
Yes. With intelligent programming and vision positioning, the system can support multiple PCB models with flexible production management.
4. Does the solution support smart factory integration?
Yes. The system can work with automated handling systems such as AGV transportation to support future smart manufacturing expansion.
5. Is a fully automated PCB routing solution suitable for every factory?
Not always. The best solution depends on production volume, product complexity, labor conditions, and future automation plans. For low-volume production, a standalone machine may be more practical.
