ZAM310S Offline Laser Depaneling Machine

の ZAM310S Offline Laser Depaneling Machine offers high-precision, stress-free PCB and FPC cutting with UV and CO₂ laser options. It delivers clean, burr-free edges while avoiding mechanical stress or distortion. With optimised cutting paths, advanced graphic editing software, and compatibility with MES systems, it ensures efficient data handling and real-time production traceability. Designed with a stable granite platform, dust extraction, and cooling systems, the ZAM310S guarantees consistent accuracy and reliability for batch and mass electronics manufacturing across automotive, medical, telecom, and consumer industries.

カテゴリー: レーザー剥離機タグ: offline laser depaneling machine, ZAM310S

説明

No.	Technical Parameter	ZAM310S
1	Laser Source	Green, UV; Picosecond / Nanosecond optional
2	Laser Wavelength	355 nm / 532 nm
3	Machine Accuracy	±25 μm
4	Repeat Accuracy	±2 μm
5	Processing Head Type	Galvo, Scanlab
6	Vision Alignment	CCD, standard 1.6 MP
7	Max. Processing Area	350 mm × 300 mm
8	Platform Height	900 ± 50 mm
9	Machine Platform	Granite platform, linear motor
10	Safety	Safety light curtain, automatic door
11	Data Processing Software	CircuitCAM 7 Standard
12	Machine Control Software	DreamCreaTor 3
13	Dimensions (H × W × D)	1624 mm × 917 mm × 1207 mm
14	Machine Weight	700 kg
15	Power Supply	380 VAC / 50 Hz, 4.5 kW

の ZAM310S Offline Laser Depaneling Machine is a high-precision solution designed for efficient and stress-free separation of PCBs and flexible circuits. Using advanced UV or CO₂ laser technology ensures burr-free, clean edges without mechanical stress, making it ideal for high-value electronics production.

⚡ Precision and Reliability

Supports a wide range of materials: PCBA, FPC, LCP, MPI, PI, PET, FR4, FR5, CEM, ceramics, and RF materials
Non-contact laser cutting prevents stress damage and distortion
Customisable processing modes with micro-level accuracy

🔄 Flexible Offline Operation

Optimised cutting paths improve efficiency and reduce cycle times
Advanced graphic editing software for quick and easy data handling
Compatible with automated loading and unloading systems
Standard industrial interfaces support integration into MES systems for data tracking and product traceability

🛠 Wide Application Range

The ZAM310S is widely used in:

FPC outline cutting
PCBA depaneling
Coverlay window cutting
Gold finger processing
High-performance electronics in automotive, medical, telecom, and consumer industries

🌍 Built for Industrial Demands

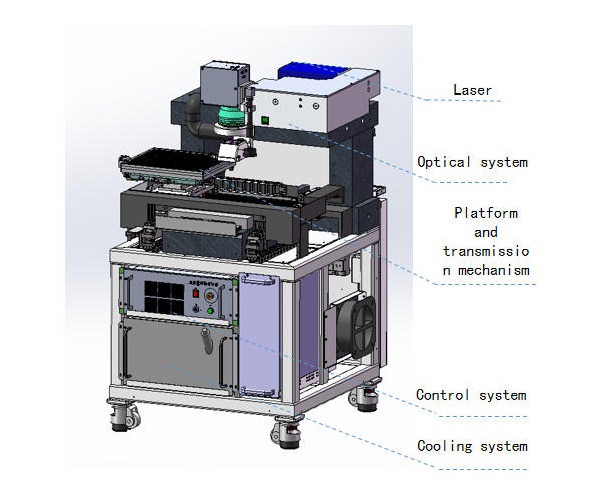

Stable granite platform for high precision
Effective dust extraction and cooling systems for clean operation
Optional advanced functions like pulse following and Skywriting
Proven reliability for batch production and mass manufacturing

の ZAM310S Offline Laser Depaneling Machine combines precision, flexibility, and efficiency, making it the perfect choice for manufacturers who require consistent quality and minimal production errors in PCB and FPC processing.
