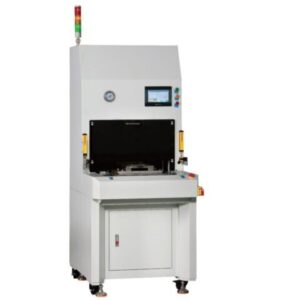

ZM10T/15T PCB/FPC Punching Cutting Machine

説明

モデル	ZM10T/15T
有効な切削領域	300*300mmまでをカスタマイズより大きいサイズ)
作空気圧力またはパイプ径	＞0.6MP/6mm
ミニ距離の部分から切断位置	≥0.5mm
FPC切断位置	な部品をクロスさせ、切断部
位置に穴の要件	FPC has 4 holes at least, and an extra one, a foolproof hole
Max高さのフレキシブルプリント基板の部品	Bottom side: The max height is 20mm On the top side, the maximum height is 35mm
操作システム	Chinese and English are optional
の金型タイプ	Blade mould, precision steel mould, complex mould
サービス、金型	1,000,000回（変更可能な無制限の倍以外の人工ダメージ）
Making the mould requires material	PCB/ FPC gerber file or CAD, and more than two pieces of samples
切断精度	0.05mm
切削効率	8s/パソコン一PNL
機出力	10T/15T出力できるカスタマイズ20/30T出力)
誤操作防護	Safety light curtain, sensor, and software triple protection. Start with both hands
パンチの切削方法	高速圧シリンダー
電源をいったん切り、空気のオフ機能	あり
労働法	自動プッシュプル出削
適用範囲	Suitable for cutting FPC, PCB, Aluminum boards, and Copper boards
安全保護	非常停止
自己診断機能	起動時間の監視と制御 生産能力の監視-制御 Equipment fault information is automatically removed from abnormal systems.
所要電力	AC220V200W
外形寸法(W*D*H)	724*1050*1900mm
重量	700kg

Product Introduction

• High efficiency, 6 to 8 panels can be cut in one minute.
• The surface of the cut products is flat, and the size is uniform.
• Low noise and no dust generation, thus reducing pollution to the environment.
• Low energy consumption, the main power is compressed air.
• Low labor intensity for employees.

The machine automatically moves the lower die in and out while gratings and safety doors protect it, ensuring operators work in a very safe environment.

の ZM10T PCB punching machine offers an advanced and efficient solution for separating Flexible Printed Circuits (FPCs) and Printed Circuit Board Assemblies (PCBAs). Engineered for high-throughput production, it delivers exceptional accuracy—dividing 6–8 pieces per minute while maintaining a smooth, uniform surface with no stress or deformation.

This smart equipment runs on compressed air, making it energy-efficient and environmentally friendly. Operating at low noise levels and producing no dust, the ZM10T PCB punching system helps reduce workplace pollution and improve overall factory cleanliness.

Operators benefit from a lower die automatic entry/exit system, safeguarded with both a safety light curtain and a safety door to ensure safe handling. The ergonomic design minimizes labor intensity and increases output consistency.

💡 Join the world’s top manufacturers in choosing reliable automation.

FAQ

どのサービスを展開していく。

We provide one-stop automated PCB depaneling solutions: laser, routing, punching,g, and V-CUT.

すことができる機械の取扱いの異なる厚さの板?

あり、当社の機械で処理するように設計されて様々な基板の厚さ. して提供できるカスタマイズやオプションを円滑に処理と剛性は、フレックス。

どのような研修だす機械?

まで、一貫して展開していますのオンサイトトレーニングを覆う機械の操作、保守、およびトラブルシューティング. また継続的な技術サポート、電話やメール.

何を販売後のサービスができるの？

● Exclusive service:

We will give users feedback within 10 minutes on any problems they encounter when using the device, and establish a 1V1 exclusive after-sales service group for users.

● Remote service:

Provide users with a7/24-hourH hotline based on feedback on fault information, analyze, locate, and solve the fault through remote telephone support, remote login, and other methods.

● On-site service:

Arrive at the work site within 8 hours and solve the problem within 1 working day. We provide 2-4 days of training on equipment safety, operation, and application. We will handle any breach of contract according to the contract provisions.

● Service locations:

して販売-サービス支援31カ国-地域、海外への対応お客様の現在および将来のニーズとが可能です。

● Benchmark service:

フォローアップコースの後、それぞれの訪問についてのビデオチュートリアル+電話の指導部品の交換、機器メンテナンスフォ月です。 今後もユーザーの収集ご提案を継続的に更新および繰り返し処理を実行し、ソフトウェアの向上、ユーザーの生産効率と品質で、生涯メンテナンス。

適用分野

Many industries that require high-precision and high-efficiency board separation widely use our PCB depaneling solutions.

主なアプリケーション分野:

• Consumer Electronics – Smartphones, tablets, laptops, and wearables.
• Automotive Electronics – PCBs for ADAS, infotainment systems, and EV components.
• Medical Devices – Precision electronics in diagnostic and monitoring equipment.
• Telecommunications – Network and communication hardware.
• Industrial Electronics – Control systems, automation equipment, and IoT devices.
• Aerospace & Defense – High-reliability PCBs for avionics and military applications.

 Contact us now and discover why over 3,000 leading companies trust SEPRAYS for their PCB depaneling needs.
