ZM300N Offline High-Speed Milling PCB Depaneling Machine

ZM300Nオフラインの高速加工基板Depaneling機

の ZM300N Offline PCB Milling Depaneler is engineered for high-precision, low-stress PCB cutting in demanding SMT environments. Equipped with a four-axis high-speed spindle, CCD vision alignment, dual worktables, and advanced ESD protection, it delivers unmatched efficiency and yield. With offline programming and MES connectivity, it’s built for the smart factory era.

カテゴリー: タグ:

説明

Item Specification
モデル ZM300N
Effective Cutting Size (mm) 370 × 420, 838 × 420 (two-in-one single table)
Cutting Functions Straight, L-shape, U-shape, circular, arc, dot
Worktable Dual worktables
Dust Collection Method (External Collector) Upper or lower dust collection
Spindle Tool Change Automatic tool change
Tool Detection Broken tool and automatic detection
Safety Protection 安全光カーテン
Machine Repeatability ±0.01 mm
Cutting Accuracy ±0.05 mm
Max. Moving Speed X/Y: 1000 mm/sec, Z: 500 mm/sec
Max. Travel (mm) X: 860, Y: 720, Z: 100
Spindle Speed Max. 100,000 rpm
Cutting Speed 1–100 mm/s adjustable
Operating System Windows10
Programming / Teaching Method CCD color vision intuitive teaching input
Control Method 精密多軸制御システム
XYZ Axis Drive AC servo motor
Applicable Tool Diameter Φ0.8–Φ3.0 mm
Power Supply AC 220V, single phase, 50/60 Hz, 3.0 kW
Air Supply 0.6 MPa, 120 L/min
Machine Dimensions (W × D × H, mm) 1360 × 1480 × 1500
重量 750 kg

Key 製品の特徴

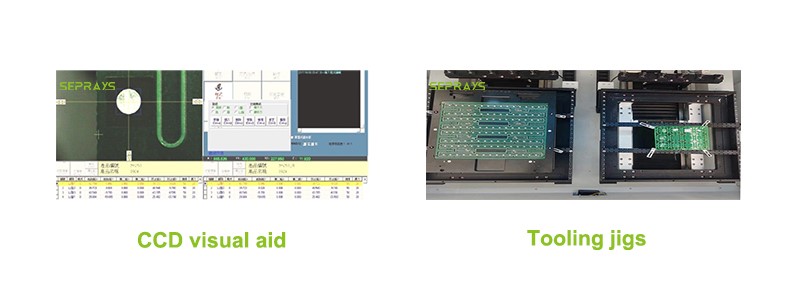

1. Precision Cutting

  • High-Speed Spindle: Imported precision spindle up to 100,000 rpm for exceptional cutting accuracy.

  • CCD Vision System: Automated correction ensures perfect alignment and repeatability.

  • Dedicated Jigs: Precisely fix and position the PCB to ensure cutting accuracy and prevent board movement or damage.

Precision Cutting

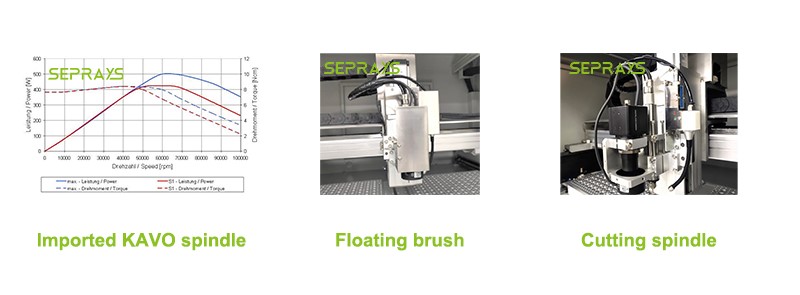

2. Low Stress Protection

  • Patented floating brush reduces Z-axis stress during cutting.

  • ESD-safe spindle and anti-static components prevent circuit damage.

  • Protects against solder joint cracks, lifted traces, and component failures.

Low Stress Protection

3. High Productivity

  • Dual worktables for simultaneous depaneling and loading/unloading—save waiting time for loading and unloading.

  • Offline programming eliminates production line delays.

  • Using independently developed control software and motion control, it has been batch-verified by large-scale SMT factories and has strong stability. The hourly output in the same unit time is 30%+ higher than that of competitors.

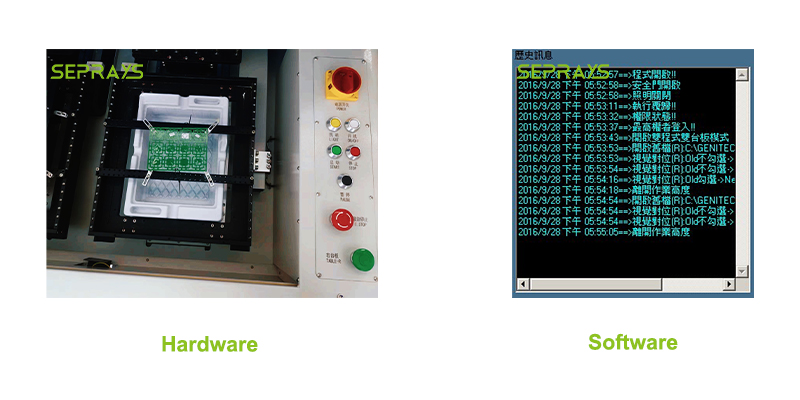

4. Smart Safety & Easy Operation

  • Dual-button start, safety light curtain, explosion-proof motor, and sliding double-door design.

  • Windows 10 OS with a user-friendly interface—easy to operate and learn.

  • Customizable user accounts with access control.

Smart Safety & Easy Operation

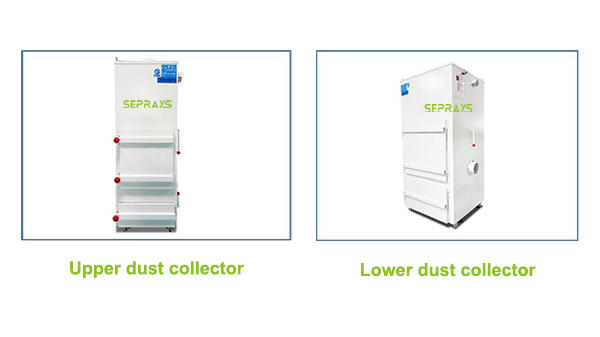

5. Clean & Dust-Free

  • Upper or lower dust collection with airspeed ≥35 m/s and ≥40 m/s.

  • Negative pressure detection and an ionizing air gun for maximum dust removal.

  • Visually dust-free in SMT production.

Clean & Dust-Free

6. Application Cases

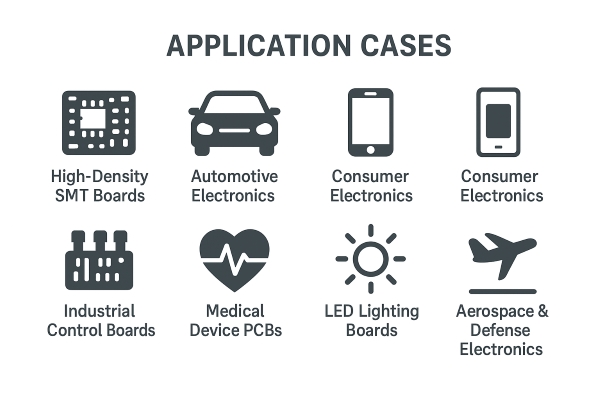

Application Cases

Why Choose ZM300N?

  • 30%+ higher throughput than comparable machines

  • 99%+ yield rate proven in mass production

  • Global service support with fast response times

  • Designed for long-term cost efficiency with low annual maintenance costs

📩 Contact Us for Pricing & Details

Email: sales@seprays.com

WhatsApp: +86-18929266433

Our PCB depaneling solution supports both PCB milling machines and routing processes, providing high-precision CNC cutting for complex PCB shapes.
