GAM360AT In-Line Automatic PCB Separator Machine

规格

项目	GAM360AT
切割区域	600*500mm
切割功能	直线、L 型、U 型、圆形、圆弧
切割速度	1-100mm/s
移栽方式	轨道输送
移动方向	从左到右或从右到左
移动方式	Tweening to a straight line, L shape, U shape, Circle, Arc
流向	Single table
加工台面	双工作台
机台重复精度	±0.05毫米
最高移动速度	XY: 1000mm/sec, Z: 800mm/sec
Max’s moving trip	X: 1040mm, Y: 655mm, Z: 90mm
主轴转速	最大 60000rpm 可调
主轴换刀方式	自动换刀
切割速度	1-100mm/s (Adjustable)
操作系统	Windows10
程序教学方法	通过 CCD 彩色图像进行直观教学输入
备份	USB
控制方式	精密多轴控制系统
XYZ轴驱动方式	AC伺服电机
功率需求	AC220V 50/60HZ 4KW 1Φ
电压/电源要求	0.6MPa，160L/min
气压要求	0.6MPa, 200L/min
尺寸（宽*深*高）	2309*1606*1717mm
设备重量	930kg
可选配	定距夹爪/变距夹爪模组 激光测高 条码读取器 刀径检测 MES客制

Product Introduction

A single workstation performs both cutting and circuit board placement, increasing productivity.

The vision camera features autofocus, eliminating the need for manual focus adjustment.

A high-speed spindle reduces cutting stress and achieves high precision, while an automatic tool changer enables automated operation.

The standard dust collector features dust detection and alarm functions to ensure effective dust collection.

MES connectivity allows for the integrated management system integration of production data and monitoring of equipment status.

The GAM360AT PCB separator is a high-performance, fully automatic PCB depaneling machine designed for precise and efficient board separation. From automatic loading, vision-based alignment, high-speed cutting, to smart unloading, the GAM360AT PCB separator streamlines your entire process while ensuring quality and repeatability.

A CCD vision positioning system allows for offset correction and alignment, which guarantees millimeter-level cutting accuracy. The GAM360AT PCB separator is equipped with a high-speed spindle featuring an auto tool-change function, minimizing static-related damage to sensitive PCBAs during processing.

Our patented flexible cleaning brush allows segmented use of the milling tool, significantly extending tool life. For higher throughput, Seprays also offers dual-spindle PCB separators, including GAM320AD, GAM330AD, and GAM340AD, tailored to your production scale.

Optional features include a clamping module, laser height checker, barcode reader, tool diameter detector, and MES integration.

Choose the GAM360AT PCB separator for reliable, scalable, and precision-driven PCB depaneling.

产品特点：

Laser Height Measurement

• A laser height measurement module is installed to check whether the PCBA is placed at the correct height when placed in the jig. This prevents misalignment and damage during separation due to improper placement of the PCBA or small board fragments in the jig.

Quick Line Changeover

• Recall existing programs to avoid jig errors, enabling quick program recall and line changeover.

High Utilization Rate

• With over 30 years of independent software development, the depaneling machine utilizes stable and reliable software, eliminating board defects caused by bugs.

Exclusive Features

• The depaneling machine features a one-piece welded design for stability and high strength.
• Made of cast aluminum, it resists oxidation, deformation, and deflection, ensuring a long lifespan and guaranteed precision.

Dust collection eliminates dust hazards

• Utilizes a high-power dust collector.
• HEPA-rated dust filtration.
• Equipped with a negative pressure detector to continuously monitor dust collection status.
• Equipped with a floating brush (invention patent number ZL201721620742.X) to enhance dust collection efficiency.

Centralized control system management

• Optional central control system: Centralized management and real-time monitoring via IP network.
• Remote device management: Remote monitoring via mobile app.

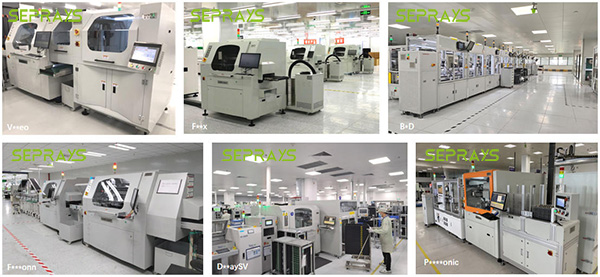

Application Cases

The GAM360AT in-line, ultra-large PCB splitter can be connected to loaders, unloaders, and PCB collectors at the front and rear ends.

 Contact us now and discover why over 3,000 leading companies trust SEPRAYS for their PCB depaneling needs.
