ZM30-V Offline Saw Blade PCBA Depaneling Machine

ZM30-V Offline Saw Blade PCBA Depaneling Machine - 图片 2

ZM30-V Offline Saw Blade PCBA Depaneling Machine - 图片 3

ZM30-V 离线式锯片PCBA分板机

SEPRAYS has been focusing on the research, development, and production of PCB depaneling machines for more than 32 years, providing free depaneling solutions.

– High-performance, high-precision, small footprint, high-efficiency depaneling equipment.

– Single table surface uninterrupted work, improves production efficiency, and is equipped with a safety grating.

– Automatic recognition of image mark point alignment, moving track position display, tracking, production output statistic, and other parameters can be set.

– Negative pressure dust removal technology, secondary dust filtration on the dust collection device, icee, and static electricity elimination device, completely solves the problem of cutting dust.

– Suitable for consumer electronics, home electronics, automotive electronics, and other related multi-connected PCB depaneling operations.

分类： V槽分板机标签： ZM30-V depaneling machine

规格

项目	ZM30-V
工作区域（基板可加工尺寸最小-最大）	X：300mm，Y:350mm，Z： 0-80mm （Min5050mm,Max300300MM)
设备外形尺寸	L850mmW850mmH1520mm
锯片主轴转速	8000转/ 分钟( 可选项）
X、Y、Z These driving speeds	X、Y轴速度5-500mm/s，Z轴速度5-80mm/s ，X,Y,Z轴最小移动距离是0.01MM
Cutting the PCB thickness range	0.2-3mm stroubleshooters are only 0.2mm)
切割精度、能力	± 0.05mm 具有切割直线、圆弧、圆、L型、U型、邮票孔机种、V卡槽机种的能力
整机功率（含集尘器）	5000W
刀具更换方式	手动换刀（需工具专用扳手更换）
Table 数量、功能	单Table
主轴冷却系统	风冷方式
集尘器功率及方式	3.5kw 380V三相电机、外置式上/下集尘（可选项）
气压	0.45Mpa以上
工作电源	220V， 50HZ（集尘器：380V，50HZ)
安全装置	adopting a safety guard door or sensor
机型模式	离线机型，手工装卸卸载
治具	Universal fixtures are available
故障自动检知维修模式	The system has a self-diagnostic function, real-time error message display, can intuitively query the status of the device’s various IO ports, and is easy to troubleshoot
技术支持及培训	To provide equipment operation, programming, hardware maintenance, and maintenance training services, as well as program permanent free upgrades. (Required)
基板厚度	0.3-3.5mm
视觉系统	CCD视觉定位校正系统
设备重量	约600kg
Adjustable height of the foot	50~70mm
工作范围保护置	adopting the six-faced door blind protection method
门的互锁保护传感器	Safety door microswitch sensor
紧急停止按钮	有

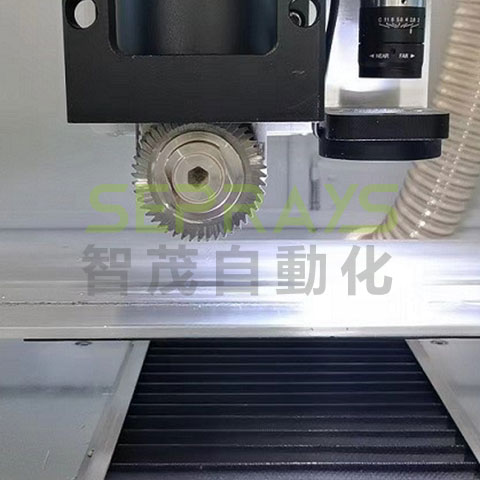

圆刀&铣刀方式	saw tooth thickness 0.2mm~0.3mm (effectively improves cutting accuracy) (optional)

Product Features

The ZM30-V depaneling machine by SEPRAYS is a high-performance, space-saving solution engineered for efficient and precise PCB depaneling in fast-paced manufacturing environments. Engineers built it to handle multi-connected PCBs with speed and accuracy, making it ideal for consumer electronics, home appliances, and automotive electronics.

Featuring a single-table surface for uninterrupted operation, the machine boosts throughput while ensuring operator safety through its integrated safety grating. The ZM30-V depaneling machine uses advanced vision technology for automatic image mark recognition and alignment. Operators can easily set and monitor track positions, production statistics, and more through a user-friendly interface.

Its powerful negative-pressure dust removal system includes secondary filtration and anti-static functionality, solving dust-related challenges and keeping the environment clean.
