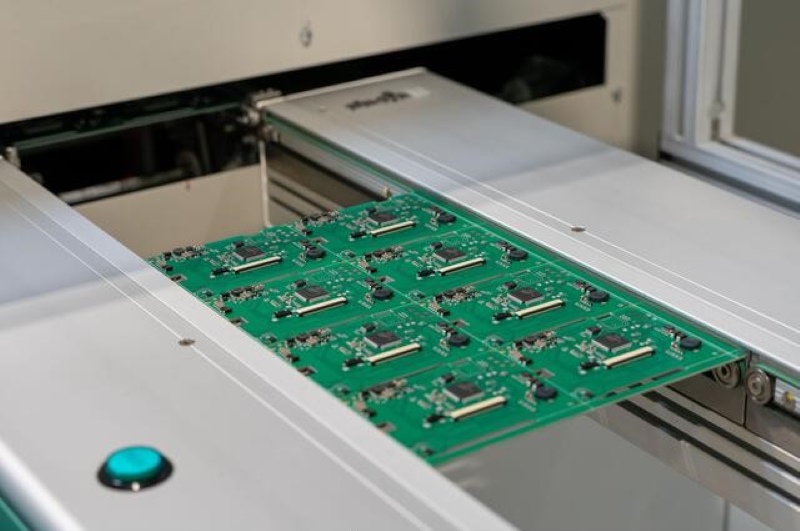

Automatic PCB Bottom Router Machine – Perfect for Undercut and High-Component Boards

When working with tall components or sensitive boards, standard depaneling tools won’t do. An Automatic PCB Bottom Router Machine is the ideal solution for undercutting and handling complex PCBAs with top-side components up to 70mm tall.

Let’s explore how this machine transforms precision routing for demanding PCBA designs.

🏗️ Built for Tall-Component Boards

The Automatic PCB Bottom Router Machine stands out due to its unique undercutting design. Unlike top routing machines, this model cuts from below, allowing clearance for high components on the top side of the board.

This reduces the risk of collisions and improves yield in:

• Automotive PCBAs
• Industrial controllers
• Telecom modules
• LED power boards

It’s your go-to solution for routing tall, delicate assemblies with maximum safety and accuracy.

🎯 Vision-Guided Accuracy with CCD System

Accuracy starts with positioning.

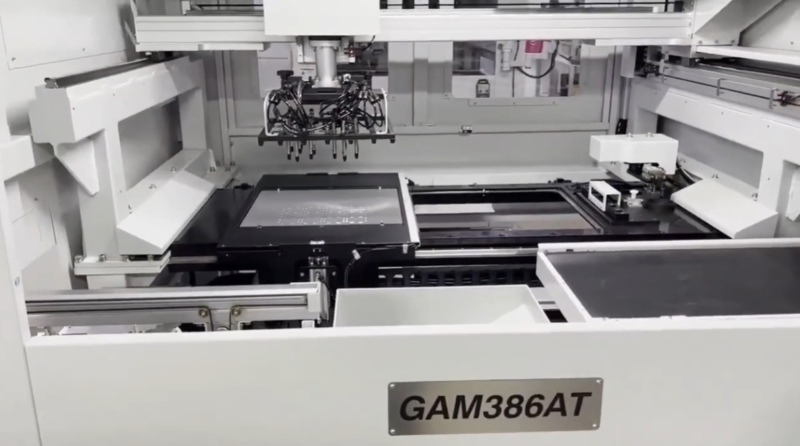

The GAM386AT is equipped with an advanced CCD visual positioning system. This ensures perfect alignment and offset correction before each cut.

The result? Ultra-precise routing — even on densely packed or irregular PCBs.

⚡ ESD Protection & Auto Tool Change

Sensitive electronics require anti-static handling. That’s why this Automatic PCB Bottom Router Machine includes a high-speed spindle with ESD protection.

It also features automatic tool changing, which:

• Reduces manual errors
• Increases cutting efficiency
• Prevents static-related damage

Together, these features ensure high reliability for mission-critical applications.

🌬️ Built-In Dust Collection for Clean Operation

The GAM386AT includes a lifting vacuum dust collector integrated directly into the machine.

This innovation:

• Keeps the workspace clean
• Improves visibility for routing
• Enhances safety for operators and equipment

No need for external vacuum units — it’s built-in, compact, and efficient.

📦 Flexible Unloading Options for Seamless Integration

Choose from three smart unloading methods:

• Belt system
• Conveyor integration
• Fixture-based unloading

These options make it easy to integrate the GAM386AT into your current or future production lines.

🚀 Perfect for Complex and Scalable PCBA Projects

Whether you’re producing automotive modules or IoT boards with tall components, this Automatic PCB Bottom Router Machine is designed for scalable, high-speed manufacturing.

Key advantages:

• Handles component heights up to 70mm
• Delivers high routing precision
• Reduces labor with automation
• Improves production cleanliness and consistency

It’s trusted by top manufacturers looking for both performance and flexibility.

🤝 Why Choose Seprays Group?

Seprays Group is more than just a machine supplier — we are a global solutions partner.

• ✅ Expert Engineering
  Our machines are designed for precision, reliability, and scalability.
• ✅ Customizable Options
  We offer tailored configurations to match your unique production needs.
• ✅ Global Reach
  Support centers in over 31 countries ensure fast service, no matter your location.
• ✅ Used by Leading Brands
  Our equipment powers factories of top global manufacturers.

📩 Need help finding the right Automatic PCB Bottom Router Machine?
Send us your product image and production needs — we’ll match you with the perfect model.
