ZM30-M Hand-push C-shaped PCB Depaneling Machine

설명

The ZM30-M PCB depaneling machine is a hand-push, C-shaped cutter designed for precise and efficient PCB separation. Its robust structure ensures smooth, burr-free cutting, making it ideal for LED, communication, and automotive circuit boards. With an ergonomic design and durable blades, the ZM30-M PCB depaneling machine offers stable performance, easy operation, and minimal maintenance—helping manufacturers improve production quality and consistency.

Product Introduction

1. During board cutting, the circular blade slides while keeping the PCB stationary, ensuring that movement does not damage the electronic components on the substrate.
2. The circular blade sliding speed is manually adjustable.
3. Operators can precisely adjust the distance between the upper circular blade and the lower straight blade based on the V-groove depth and blade wear.
4. It can solve the problem of components crossing V-grooves to separate boards.
5. It minimizes the internal stress generated during board cutting, thus avoiding solder cracking.
6. After use, the equipment should be thoroughly cleaned, and rust-preventive oil should be applied to the blades and easily rusted areas.
7. Before storage, thoroughly clean the equipment, apply rust-preventive oil, and store it in a cool, dry place.
8. The blade delivers a service life of 100,000 cycles and allows 2–3 re-sharpenings.

Product Parameters

• Machine Dimensions: L820*W390*H360mm
• Net Weight: 60Kg
• Blade Material: Imported SHD61 high-speed steel
• Upper Circular Blade: Diameter 125mm, Lower Straight Blade Length: 360mm

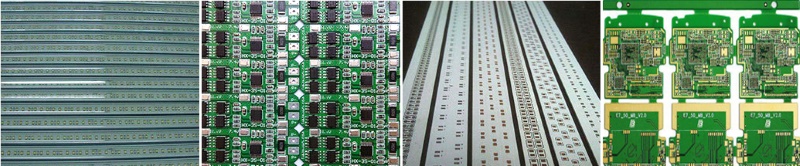

Application Cases
