의 유형을 가진 기계를 사용할 수 있습니다(밀링,레이저,V 컷,구멍을 뚫는)?

PCB depaneling machines are essential tools in electronics manufacturing. They separate individual boards from larger panels with precision, speed, and reliability. Instead of manual cutting or breaking, modern depaneling machines use advanced technology to reduce stress, improve edge quality, and increase production efficiency.

⚙ Milling Cutter Depaneling Machines

Milling depanelers use high-speed rotating blades to cut PCBs along programmed paths. This method offers:

High precision (±0.05 mm).
Mirror-smooth edges with minimal burrs.
Low mechanical stress protects sensitive components.

Milling machines are perfect for complex shapes, irregular outlines, and high-density boards. Equipped with dust extraction systems, they also keep the work area clean and safe.

💡 Laser Depaneling Machines

Laser depanelers use a high-energy beam to separate PCBs without physical contact. Key benefits include:

Zero mechanical stress on components.
Extreme precision, even for fine-pitch designs.
Flexibility, as they can cut intricate patterns.

Laser depaneling is often used in medical electronics and flexible PCBs, where delicate materials require stress-free separation.

📏 V-Cut (V-Scoring) Depaneling Machines

V-cut depanelers work along pre-scored grooves in the PCB panel. This is one of the most traditional and cost-effective methods. Advantages include:

High-speed separation.
Simple operation for straight-line cuts.
Lower equipment cost compared to milling or laser.

However, V-scoring is less suitable for complex shapes and may apply more stress compared to milling or laser depaneling.

🚀 Punching Depaneling Machines

Punching depanelers use custom dies to stamp PCBs out of panels. Their strengths are:

Ultra-fast processing speeds.
High throughput, ideal for mass production.
Consistent repeatability with the same die design.

Punching is best for simple board outlines produced in very high volumes. The main limitation is tooling cost and a lack of flexibility for design changes.

🏭 Choosing the Right Depaneling Method

When deciding which PCB depaneling machine to use, consider:

Board complexity – irregular shapes require milling or laser.
Component sensitivity – choose low-stress methods for fragile parts.
Production volume – high-volume lines benefit from punching or V-cut.
Cost considerations – balance machine investment with long-term yield savings.

Every method has its place in electronics manufacturing, but precision and low stress are the keys to consistent quality.

💎 The Benefits of Advanced Depaneling Machines

No matter the type, modern depaneling machines provide:

Low stress separation for better reliability.
Clean, mirror-smooth edges for easier assembly.
Higher yields and lower waste.
Automated operation for faster cycle times.

These benefits directly impact product quality and overall manufacturing efficiency.

💡 Why Choose Seprays Group?

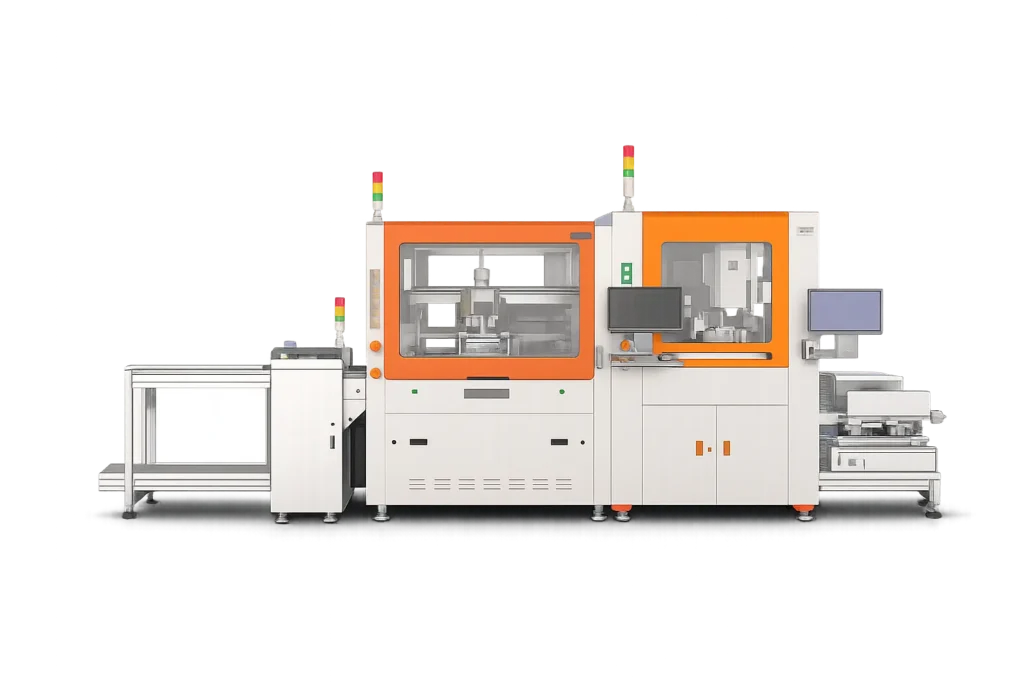

At Seprays Group, we provide the full range of PCB depaneling machines, including milling, laser, V-cut, and punching solutions. Our equipment delivers:

±0.05 mm precision cutting.
300 μe low-stress separation.
Powerful dust extraction for cleaner workspaces.
24/7 automation for maximum productivity.

Since 1993, Seprays Group has been dedicated to PCB/FPC depaneling technology, providing a full range of solutions — milling cutter depanelers, laser depanelers, V-groove depanelers, punching depanelers, and automated handling systems. Our equipment is trusted by leading manufacturers, including Foxconn, Flextronics, State Grid, Luxshare, Compal, Wistron, China Electronics, Quanta, CRRC, China Aerospace, OPPO, ZTE, and Bosch, serving factories across China and worldwide.
