ZM30-A Fully Automatic In-Line V-groove Depaneling Machine

ZM30-A Fully Automatic In-Line V-groove Depaneling Machine - Image 2

ZM30-A Fully Automatic In-Line V-groove Depaneling Machine

SEPRAYS has been focusing on the research, development, and production of PCB depaneling machines for more than 32 years, providing free depaneling solutions.

– It is especially suitable for PCBA board separation operation, which has completed the insertion process, ensuring the safety of electronic components and improving the efficiency of the latter process.

– Provide an optional automation module, including automatic feeding, slitting, and automatic board receiving function, easy and fast operation, significantly improving production efficiency and operational convenience.

– Precise parameter setting, efficient dual knife cutting process.

– Multi-group and multi-tool head fast slitting, realizing efficient and precise board separation.

– Automatic output and docking, supporting seamless docking with subsequent production links, strengthening the overall flow of the production line.

Category: V-groove Depaneling Tag: ZM30-A V-groove depaneling

Specifications

Model	ZM30-A
Size	15008001500mm
Shape	Vertical
Weight	300KG
Color	computer white
Power supply	AC220V 1000W
Environmental requirements	clean and dry environment, avoid humidity or high temperature
Working air pressure/tube diameter	>0.6MP/8mm
Minimum cutting distance	≥1.5mm
Splitting width	300mm300mm / 1212mm
Board inlet adjustment	front side fixed, rear side movable adjustment
Maximum height of PCB components	20mm for PCB reverse side parts, 35mm for front side parts
Parameter setting	According to the size of the V-slot touch screen, direct input
Storage module	can store 50 groups of programs
Blade	Japan imported a high-speed steel knife
Blade angle	10-30 degrees (selectable)
Die precision	0.1mm
Partitioning efficiency	15s/pcs(200*150mm) standard speed cut 8 knives for reference
Maximum length and width of the assembly line	650mm*250mm
Split board speed	0-800mm/s
Suction cup manipulator control mode	stepping motor + guide rail + belt drive
Dust suction mode and power	1500W under the knife group dust suction
Board thickness	0.4-3.5mm
Misoperation protection	triple protection of grating, sensor, and software.
Safety protection	emergency stop
Power failure and air cut-off function	Yes
Self-test function	power-on time monitoring, capacity monitoring, equipment failure information, and an automatic elimination system

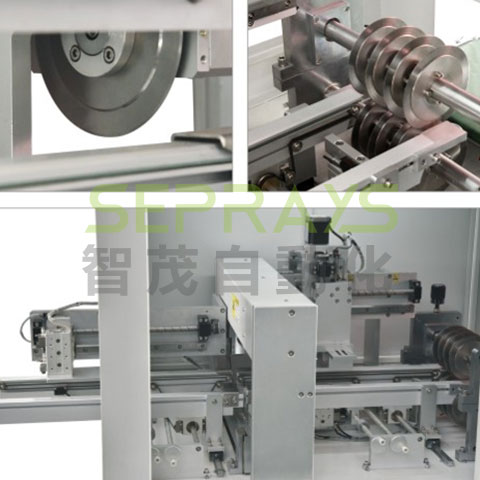

The main parts of the machine	board feeder (assembly line), suction cups, three-axis mobile slitting flat, vacuum cleaner
Work mode	automatic robot online slitting and feeding boards
Suitable for	Insertion / SMD / Dual Direction

SEPRAYS specifically engineered the ZM30-A V-groove depaneling machine for high-precision depaneling of PCBA boards after component insertion.
Designed to protect delicate components during the cutting process, it enhances safety while boosting downstream production efficiency.

This machine features a dual-knife cutting mechanism, enabling fast and accurate separation through multiple V-groove tracks. With optional automation modules—including automatic feeding, slitting, and board receiving—the ZM30-A V-groove depaneling machine ensures smooth, operator-friendly performance that significantly increases throughput.

Its configurable parameters allow for fine-tuned operation, while multi-head tooling enables quick and consistent slitting across multiple board groups. The separator also supports automatic output and docking with subsequent systems, ensuring uninterrupted workflow across your production line.
