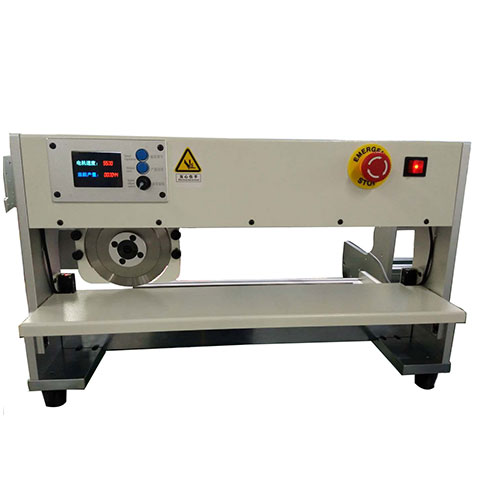

ZM30 PCB Round Blade V-CUT Depaneling Machine

Specifications

Product Introduction

After soldering multiple PCBAs, breaking them can often damage circuitry or break electronic components. Using this machine prevents this damage and improves work efficiency and quality.

The moving blade cuts the board, completely reducing stress and preventing cracking in solder joints and component breakage.

You place the PCBA on the lower flat blade, and the upper circular blade works with the lower flat blade to process it. Pressing the switch causes the upper circular blade to move horizontally to the set point, immediately cutting the board. This ensures smooth, flawless cuts.

The blade travel can be adjusted to the desired stop point, depending on the length of the PCBA. The stop points range from 0 to 100 mm, 200 mm, 300 mm, and 400 mm.

A cutting length stopper is located behind the cutter to accommodate different PCBA widths. The machine cuts even PCBAs without V-cut grooves accurately and without skew.

The machine can fine-tune the thickness of various PCBA boards, resolving issues with the depth of the V-cut groove.

The upper and lower knives are made of imported high-speed steel, which is extremely durable. You can resharpen the knife when it becomes dull, and you can repeat the process about 7 to 10 times.

Application Examples

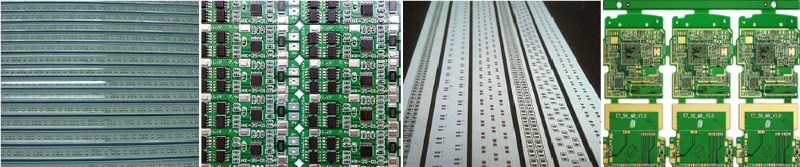

Suitable for slitting various V-grooved PCBAs, SMT circuit boards, aluminum substrates, LED circuit boards, and LED light strips.

Main applications include the LED industry, SMT industry, mobile phone/MP3 player industry, electronic toy industry, various electronics industries, and other industries using circuit boards.

The ZM30 PCB V-CUT Depaneling Machine by SEPRAYS is expertly designed for efficient and precise separation of PCBs featuring V grooves, aluminum substrates, LED circuit boards, and LED light strips. Widely used in industries such as LED manufacturing, SMT, mobile phones, and toys, the ZM30 PCB V-CUT Depaneling Machine delivers reliable performance for a variety of electronic circuit boards.

This machine reduces stress on PCBs during splitting, minimizing the risk of solder joint cracks. It securely fixes boards during cutting to ensure flat, burr-free incisions. With cutting strokes available in 330mm, 460mm, and 560mm, it accommodates diverse production needs. High-speed operation reaches up to 300mm/s or 500mm/s, adjustable to your process requirements.

The special round knife material guarantees smooth PCBA surfaces, while the machine offers high accuracy, easy maintenance, and enhanced safety features.

Trusted by top 500 companies worldwide, the ZM30 PCB V-CUT Depaneling Machine is your go-to solution for high-quality PCB depaneling.

📩 Contact us today with your product image, and we’ll recommend the perfect machine for your needs!
