What Is PCB V-Cut Depaneling? Advantages and Disadvantages Explained

What Is PCB V Cut Depaneling

PCB V-Cut分板 is a method for separating individual circuit boards from a larger panel or array. During the PCB manufacturing process, multiple boards are often fabricated together in a single panel to improve production efficiency. V-cut depaneling involves creating V-shaped grooves (also called V-scores) along the intended break lines on the PCB panel.

Advantages of PCB V Cut Depaneling

节省的钱

它便宜，因为它使用简单的工具和创造减少浪费。

快速

这是一个快速的方式单独板，尤其是在使用机器，这是使许多板。

容易做到的

该过程的简单和可通过手工或机器，使其灵活的针对不同的生产需要。

保存空间

它消除了非常少的材料，使更多的板可以适合单个小组，节省空间和材料。

让板强

小组坚强和容易处理，直到董事会分离，减少了损害。

干净的边缘

它创造了平稳的边缘时分板，使他们看起来整洁，不需要额外的整理。

对于许多设计

它可用于大多数板形状，尤其是简单的像矩形或正方形。

温柔的部件

它使得小强调在委员会及其零部件，因此有少风险的损害。

好的大制作

它的伟大使很多董事会迅速和有效。

可以是自动的

机器能做到切割，使其更快和更一致的大规模生产。

Disadvantages of PCB V Cut Depaneling

仅适用于直线

V-切割不能把手的弯曲或复杂的形状。 它仅适用于直的边缘。

可以损害委员会

打破板沿V-槽可以把压力板，这可能会损害的精密部件或痕迹附近的边缘。

不好薄或灵活板

薄或柔韧板可能会裂开或经当你打破他们沿着V-槽。

可以是粗糙的边缘

边缘可能不是完全顺利裂后，特别是如果通过手工完成的。 这可能需要额外的清洗或整理。

不太精确的

V-切割是不准确的方法，如激光器切割。 它不适用于委员会需要非常清理或精确的削减。

风险的伤害的部件

如果部分是太靠近边缘、破坏委员会可能会损害他们。 你需要计划设计小心，以避免这一点。

手工作业的小批量

对于小生产运行，可能必须打破委员会一方面，它可以是缓慢和不一致。

创建灰尘

Breaking the boards creates dust and small pieces, so operators may need to clean them off the boards afterward.

Advantages of Seprays V-Groove PCB Cutting Machine

• The V-groove depaneling machine offers higher-quality board separation.
• It features fully automated operations, including self-feeding, cutting, finished product discharge, and waste collection.
• It supports automatic depaneling in both X and Y directions for V-groove boards.
• The machine ensures smooth and burr-free cutting of aluminum substrates, copper substrates, FR4, and fiberglass boards.
• During line changeovers, the cutting blade module and suction cups can be replaced without manual blade adjustment, saving time.
• It can automatically arrange small PCBs into trays or transfer them via a conveyor line according to customer requirements.

Seprays'PCB/PCB V-槽PCB、分割的解决方案

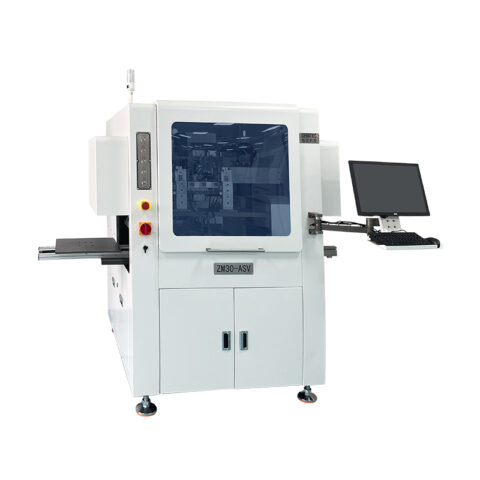

ZM30-ASV 全自动在线V槽锯片分板机

SEPRAYS'ZM30-圣经完全自动化的锯型V-槽PCB、分割机是一个重大进步PCB、分割技术，提供一个全面的解决方案的高效和高质量的分板.

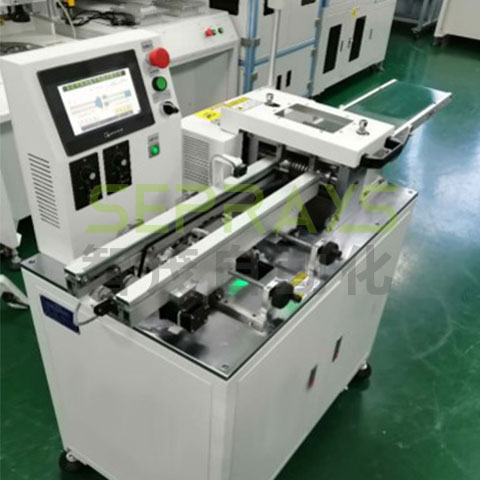

ZM30-LT 在线式多刀PCBA分板机

The ZM30-LT In-Line Multi-Knife PCBA Depaneler, offered by SEPRAYS, is a high-tech solution designed for efficient and precise separation of Printed Circuit Board Assemblies (PCBAs) in high-volume manufacturing environments.

ZM30 走刀式PCB分板机

SEPRAYS ZM30 Round Knife PCB Separator is suitable for all kinds of PCB circuit boards with V grooves, aluminum substrates, LED circuit boards, LED light strips, etc. It is mainly used in LED, SMT, mobile phones, toys, and other electronics industries that use circuit boards. Manufacturers mainly use these circuit boards in the LED, SMT, cell phone, toy, and other electronics industries, applying them across various sectors.

结论

PCB V-cut depaneling is a practical and efficient way to separate circuit boards, offering benefits like cost savings, speed, and ease of use. Although it presents some drawbacks, such as limitations to straight edges and potential stress on components, Seprays’ V-groove cutting machines actively solve many of these issues. With features like full automation, smooth cutting, and support for different materials, Seprays’ machines provide a reliable solution for modern PCB manufacturing. Whether for large-scale production or specific needs, V-cut depaneling remains an important tool in the electronics industry.
