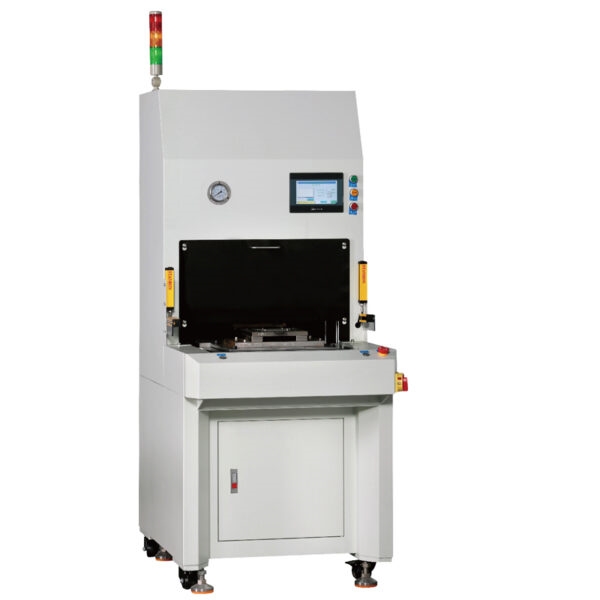

ZM10TY/15TY PCB/FPC Punching Cutting Machine

Specifications

Model	ZM10TY/15TY
Valid cutting area	300*300mm( Can customize larger size)
Working air pressure/ Pipe dia	＞0.6MP/ 6mm
Mini distance of the part from the cutting position	≥0.5mm
FPC cutting position	No components are allowed to cross over the cutting part
Position hole requirement	FPC has at least 4 holes, and an extra one foolproof hole
Max height of the FPC components	Bottom side: The max height is 20mm On the top side, the maximum height is 35mm
Operation system	Chinese and English are optional
The mould type	Blade mould, precision steel mould, complex mould
The service life of the mould	1,000,000 times( can be modified unlimited times except for man-made damage)
Making the mould requires material	PCB/ FPC gerber file or CAD, and more than two pieces of  samples
Cutting precision	0.05mm
Cutting efficiency	8 s/pcs in one PNL
Machine output	10T/ 15T output( can customize 20/30T output)
Mis-operation protection	Safety light curtain, sensor, and software triple protection. Start with both hands.
Punch cutting method	Electric hydraulic cylinder
Power off and air off function	Yes
Working method	Automatic push-pull in and out cutting
Scope of application	Suitable for cutting FPC, PCB, Aluminum boards, and Copper boards
Safety protection	Emergency stop
Self-test function	Start-up time monitor and control Production capacity monitor and control Equipment fault information and automatically removed from abnormal systems
Power requirement	AC 220V  200W
Dimensions(W*D*H)	800*1250*2100mm

Product Introduction

Engineers designed the ZM10TY PCB punching machine to deliver fast, accurate, and safe depaneling of Flexible Printed Circuits (FPCs) and Printed Circuit Board Assemblies (PCBAs). Built to handle high-throughput environments, it can process 6–8 boards per minute with excellent surface uniformity and minimal stress on components.

This advanced solution operates with low noise and produces no dust, reducing environmental impact and making it suitable for cleanroom applications. Powered by compressed air, the ZM10TY PCB punching system is both energy-efficient and operator-friendly. It features a lower die with automatic entry and exit, protected by a safety light curtain and a safety door to ensure full compliance with safety standards.

✅ Flat, burr-free cuts
✅ Low maintenance and energy cost
✅ Ideal for electronics, LED, and mobile device industries
