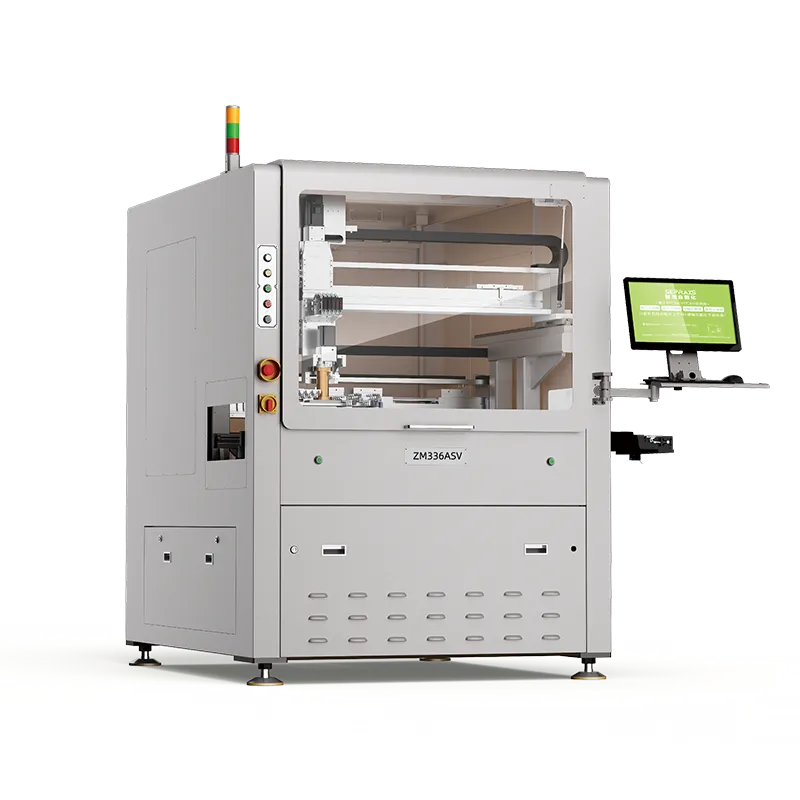

ZM336ASV/ZM336ASVL Fully Automatic V-Cut & V-Groove PCB Depaneling Machine

The ZM336ASV/ZM336ASVL automates the PCB depaneling workflow from loading to unloading.

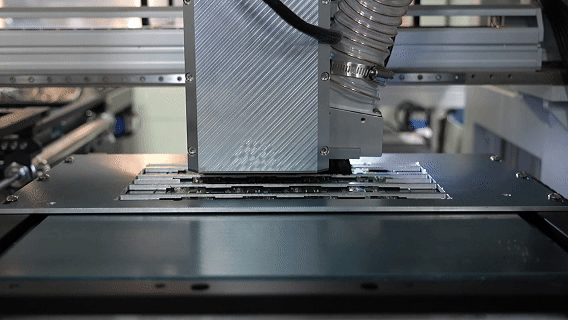

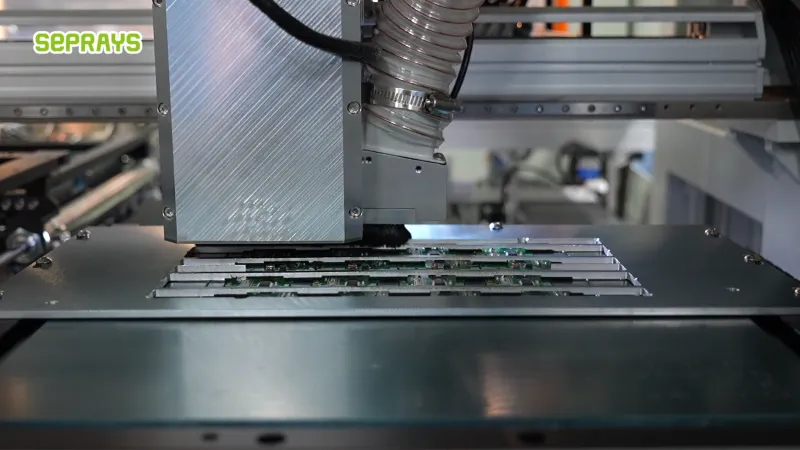

The machine uses V-Cut and V-Groove cutting technology for controlled panel separation.

X/Y-axis movement allows the system to process V-grooves in different directions.

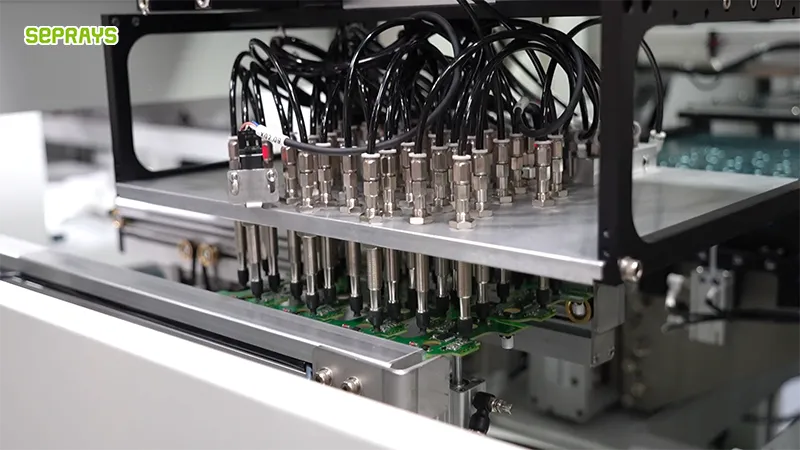

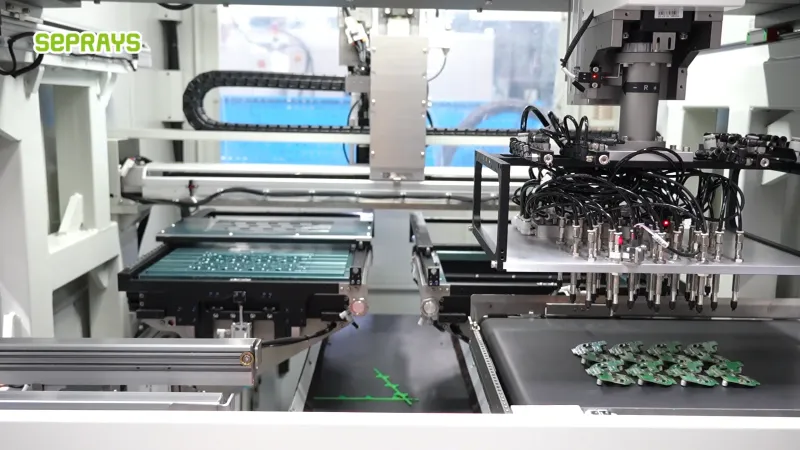

A robotic transfer system with vacuum suction handles PCB movement automatically.

The system transfers finished boards via conveyor or track delivery, while operators arrange small PCB pieces into trays or transfer them directly to the production line.

Key Features of ZM336ASV/ZM336ASVL

Fully Automatic Operation
Automates PCB loading, cutting, unloading, and waste collection.

X/Y-Axis V-Groove Separation
Supports automatic V-groove separation in both X and Y directions.

Clean, Burr-Free Cutting
Designed to deliver flat and burr-free cutting results on aluminum, copper, FR4, and fiberglass boards.

Automatic PCB Handling
Uses robotic handling and vacuum suction to move PCBs during the depaneling process.

Fast Production Changeovers
Operators can replace tooling and suction components during line changes without manually adjusting the blades, helping reduce setup time.

Flexible Output Options
Finished PCBs can be transferred by conveyor belt or track delivery.

Production Line Integration
Small PCB pieces can be automatically placed into trays or transferred to the next production process.

Faster Production Changeovers

Frequent line changes can increase setup time and reduce production efficiency.

The ZM336ASV/ZM336ASVL simplifies changeovers by allowing operators to replace the required blade mold and suction cup components.

No manual blade adjustment is required during tooling and suction cup changes.

This helps reduce setup work and supports more flexible multi-product production.

Built for Demanding PCB Production

The ZM336ASV/ZM336ASVL is suitable for PCB manufacturers and electronics manufacturers that need automated V-Cut or V-Groove panel separation.

Typical applications include:

• Automotive Electronics
• Consumer Electronics
• EMS Production
• Industrial Electronics
• High-Volume PCB Manufacturing
• Aluminum PCB Production
• FR4 PCB Production
• Copper PCB Applications

Why Choose Seprays?

Choosing a PCB depaneling machine is not only about the equipment.

It is also about engineering experience, manufacturing capability, and after-sales support.

30+ Years of PCB Depaneling Experience
Decades of experience in PCB separation technology and equipment development.

26,000 m² Manufacturing Base
A large manufacturing facility supporting equipment production and delivery.

100+ Patents
Continuous investment in PCB depaneling technology and engineering innovation.

9 Service Locations in China
Local service support across major regions in China.

31 Overseas Markets
Seprays supports customers across international markets.

Trusted by Leading Industries
Our solutions serve customers in automotive electronics, consumer electronics, EMS, and other electronics manufacturing sectors.

Proven in Electronics Manufacturing

PCB depaneling requirements vary across industries.

In automotive electronics, production teams focus on stable quality and repeatable processing.

In consumer electronics, manufacturers often need efficient panel separation for high-volume production.

For EMS manufacturers, flexible changeovers and production-line integration can be important for handling different products.

The ZM336ASV/ZM336ASVL meets these production requirements by performing automated V-Cut and V-Groove PCB separation.

FAQ

How do I know if V-Cut depaneling is suitable for my PCB?

V-Cut depaneling is generally suitable for panels with pre-scored V-grooves. The final solution depends on your PCB structure, material, thickness, panel layout, and production requirements.

What is the difference between V-Cut and PCB routing?

V-Cut depaneling separates boards along pre-defined V-grooves. PCB routing uses a milling cutter to follow programmed cutting paths and is more flexible for irregular PCB outlines.

Can the machine process aluminum PCBs?

Yes. The ZM336ASV/ZM336ASVL is designed to process aluminum, copper, FR4, and fiberglass boards. Final processing performance should be evaluated based on the actual PCB specifications.

Can the machine be integrated into our existing production line?

Yes. The machine supports track-based loading and conveyor or track-based unloading. Finished boards can also be transferred to a tray or the next production process.

What information should I provide for a machine recommendation?

Send your PCB drawing, panel layout, PCB material, thickness, V-groove design, board size, production volume, and current separation process.

This allows our engineering team to recommend a suitable configuration.

Can Seprays test our PCB before we place an order?

Yes. For a new application, providing PCB samples or drawings allows the engineering team to evaluate the separation process and recommend a suitable solution.

Can the machine handle different PCB products?

Yes. The machine is designed for automated production and supports changeovers by replacing the required tooling and suction components. The configuration depends on the PCB products being processed.

What support does Seprays provide after installation?

Seprays has more than 30 years of PCB depaneling experience, 9 service locations in China, and experience supporting customers across 31 overseas markets.

Get Your V-Cut Depaneling Solution

Looking for a fully automatic V-Cut & V-Groove PCB depaneling solution?

Send us your PCB drawing, panel layout, material, V-groove design, and production requirements.

Our engineering team can evaluate your application and recommend a suitable depaneling solution.

Request a Quote →
