Specifications
Efficient, Automated V-Groove PCB Separation
В ZM336ASV/ZM336ASVL delivers precise, fully automated V-Cut depaneling with X/Y-axis separation, automatic PCB handling, and fast production changeovers.
Designed for high-volume SMT/PCBA production, it helps reduce manual handling and maintain consistent cutting quality.
Fully Automatic | X/Y Separation | ±0.15 mm Accuracy | Fast Changeovers

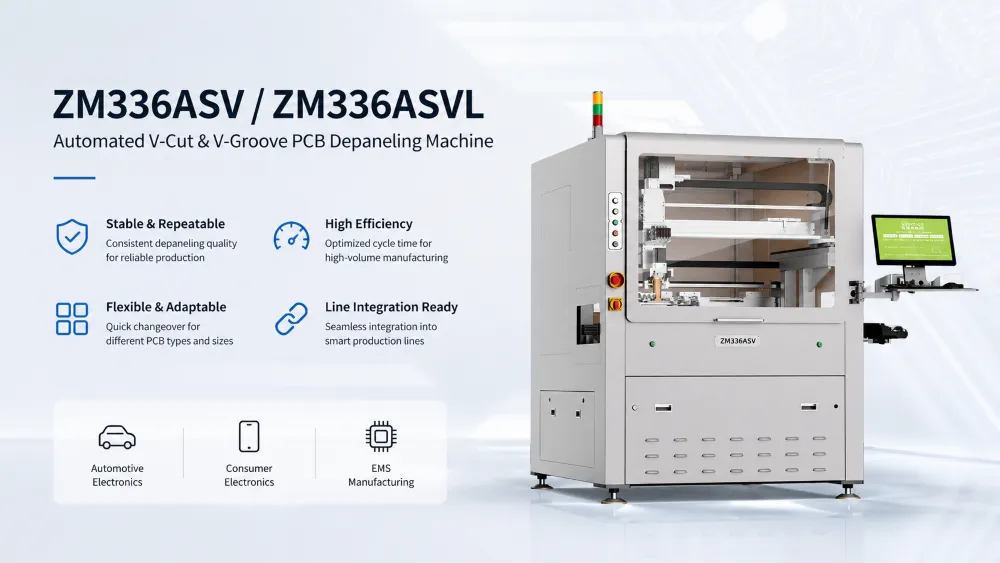

Why Choose ZM336ASV/ZM336ASVL?
Fully Automatic Depaneling
Automates PCB loading, V-groove separation, unloading, and waste collection for efficient production.
X/Y-Axis V-Groove Separation
Supports automatic separation along X and Y directions for compatible V-scored PCB layouts.
Consistent Cutting Quality
Precision cutting delivers stable separation and clean edges on suitable V-grooved PCBs.
Automatic PCB Handling
Robotic transfer and vacuum suction reduce manual PCB handling during production.
Fast Production Changeovers
Replace cutting tooling and suction components without manual blade adjustment, helping reduce setup time.
Flexible Production Integration
Conveyor and track output options support automated PCB transfer and downstream production processes.

Upgrade Your PCB Depaneling Process
Still facing manual handling, inconsistent cutting, or frequent production changeovers?
| Production Challenges | ZM336ASV/ZM336ASVL Solutions |
|---|---|
| Manual PCB Separation | Fully Automatic Depaneling |
| Different V-Groove Directions | X/Y-Axis Separation |
| Inconsistent Cutting Quality | Precision V-Cut Processing |
| Time-Consuming Changeovers | Quick Tooling Replacement |
Improve your production efficiency with automated V-Cut depaneling.

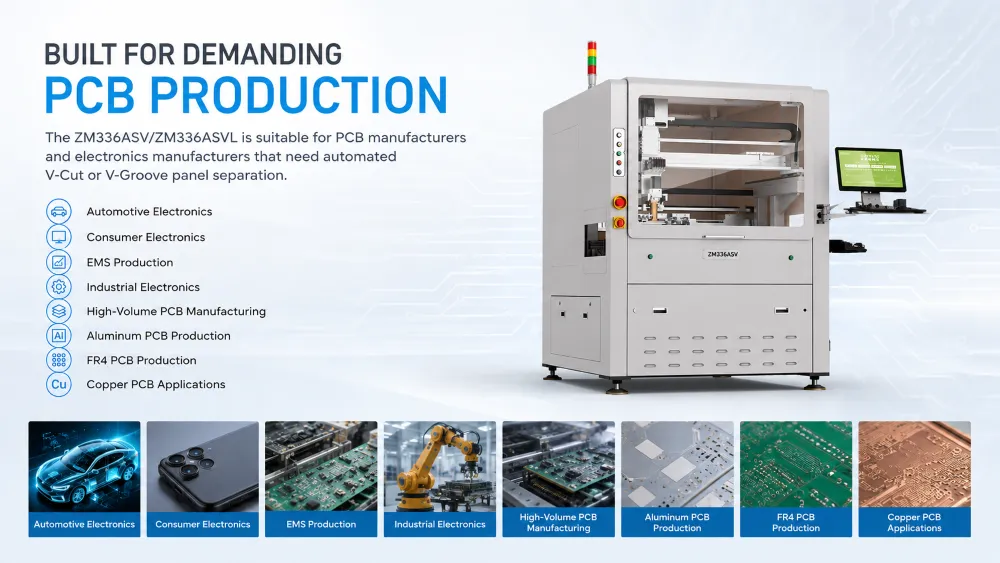

V-Cut PCB Applications
Designed for V-scored PCB panels used in electronics manufacturing.
- FR4 PCB
- Aluminum PCB
- Copper PCB
- Fiberglass PCB
Suitable for automotive, consumer, and industrial electronics, as well as EMS production.
Processing suitability depends on PCB material, thickness, V-groove design, and panel layout.

ZM336ASV/ZM336ASVL Technical Specifications
| Items | ZM336ASV | ZM336ASVL |
| Допустимый размер резки | 330*280mm | 430*400mm |
| Working height | 900±20mm | |
| Repeat precision | ±0,01мм | |
| Cutting accuracy | ±0.15mm | |
| Cutting speed | 1~100mm/s | |
| Architecture | Feeding via rail conveyor, equipped with a transverse
height-adjustable circular cutter and V-cut cutter head. |
|
| Способ загрузки | Track Delivery | |
| Способ разгрузки | Доставка по конвейерной ленте или гусеничному пути | |
| Transfer method | Manipulator handling, vacuum suction | |
| Направление движения | Слева направо или справа налево | |
| Максимальная скорость перемещения | X Y:1000mm/s z:800mm/s | |
| Max moving trip | X:970mm/Y:630mm/Z:100mm | |
| Operation interface | WIN10 Windows operation interface | |
| Program teaching method | Manual teaching | |
| Program backup | USB | |
| Требования к пневматическому давлению | 0.45~0.6 MPa,380L/min | |
| Требуемое напряжение / Мощность | AC220 50/60HZ 2.5KW | |
| Dimensions (W*D*H) | 1705*1870*1879mm | 1708*2281*1879mm |
| Вес | 975KG | 1200KG |
Is ZM336ASV/ZM336ASVL Right for Your PCB?
Every PCB is different. The right V-Cut depaneling solution depends on your PCB size, material, thickness, V-groove layout, and production requirements.
Send us your PCB drawing or sample. Our engineers will evaluate your application and recommend a suitable machine configuration.
Sample cutting tests are available upon request.

Вопросы и ответы
1. Can the machine be evaluated using our PCB samples before purchase?
Yes. Contact Seprays to discuss a sample cutting test. Please provide your PCB samples or relevant drawings so our team can evaluate your application.
2. Can the machine be integrated into an existing production line?
Integration depends on your current conveyor layout, loading and unloading method, and automation requirements. Please share your production line layout so we can assess the integration options.
3. Can the machine be customized for our production requirements?
Customization options depend on the required functions, PCB specifications, and production process. Contact our team to discuss your specific requirements.

Why Choose SEPRAYS?
- Over 30 years of PCB depaneling experience
- 26,000 m² manufacturing base
- 100+ patents
- International sales and service support across 31 markets

Get Your V-Cut Depaneling Solution
Looking for a fully automatic V-Cut PCB depaneling machine?
Share your PCB drawings, V-groove design, and production requirements with our engineering team.
[Get a Quote] [Request Sample Cutting Test]
