ZM300NT Offline PCB Milling Depaneling Machine for High-Density PCBA: Improving Precision and Protecting Sensitive Components

PCB milling depaneling machine selection has become much more important as PCB assemblies continue to shrink while component density keeps increasing. Many manufacturers discover that a depaneling process that worked well three years ago now causes hidden problems—micro-cracks, solder joint stress, damaged edge components, or inconsistent cutting quality.

If your production involves automotive electronics, communication modules, industrial controllers, medical devices, or consumer electronics, the depaneling stage deserves as much attention as SMT placement or reflow soldering.

This article shares practical observations from production environments, discusses common mistakes, compares different depaneling methods, and explains why many factories are moving toward high-speed milling solutions such as the ZM300NT.

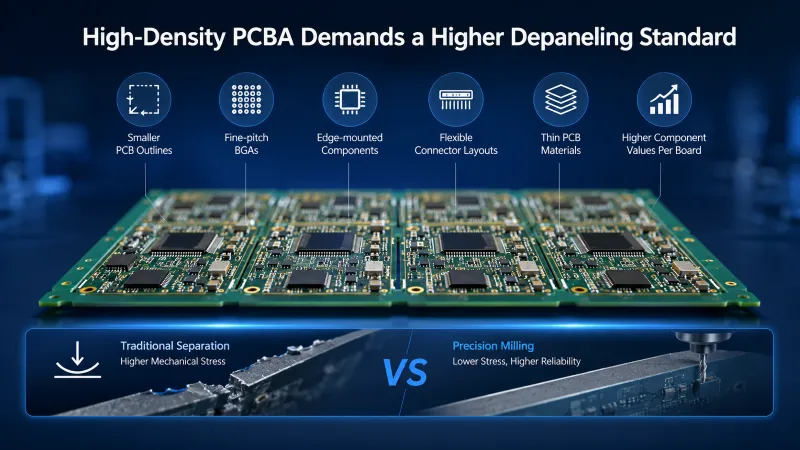

🔍 Why High-Density PCBA Changes the Depaneling Standard

A growing number of electronic products now feature:

• Smaller PCB outlines
• Fine-pitch BGAs
• Edge-mounted components
• Flexible connector layouts
• Thin PCB materials
• Higher component values per board

These improvements make products lighter and more powerful.

They also make traditional separation methods much less forgiving.

A tiny amount of mechanical stress that once had little impact may now create invisible damage inside multilayer boards.

The result?

Products pass factory testing but fail months later in the customer’s hands.

That hidden cost is often far greater than the cost of upgrading the depaneling process.

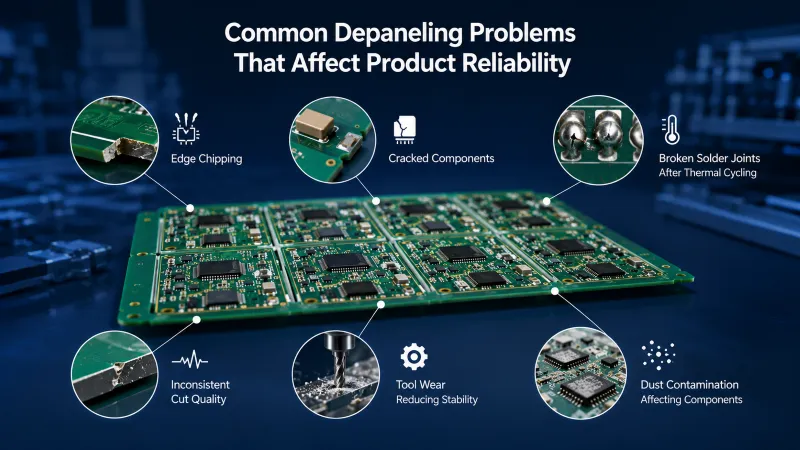

⚠️ Common Problems Manufacturers Still Face

Many production teams notice similar symptoms:

• Random PCB edge chipping
• Cracked ceramic capacitors near board edges
• Broken solder joints after thermal cycling
• Inconsistent cut quality
• Tool wear reduces production stability
• Dust affecting sensitive electronic components

Interestingly, these issues rarely appear immediately.

Instead, they become warranty claims, field failures, or unexpected maintenance costs.

From an engineering perspective, depaneling quality directly affects long-term product reliability.

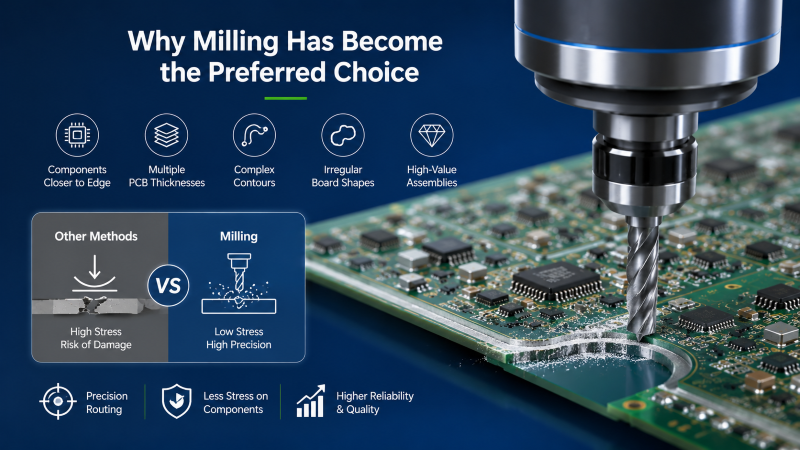

🏭 Why Milling Has Become the Preferred Choice

Not every PCB requires milling.

Simple V-cut boards with generous component clearance can still be separated efficiently using other methods.

However, today’s high-density PCBA often introduces several constraints:

• Components are only millimeters from the routing paths
• Multiple PCB thicknesses
• Complex contours
• Irregular board shapes
• High-value assemblies

Under these conditions, precision routing offers better process control.

Rather than breaking panels through mechanical force, the cutting tool removes material gradually, reducing stress transferred to nearby components.

This approach is especially valuable for products with expensive ICs or sensitive sensors.

⚙️ Where the ZM300NT Fits

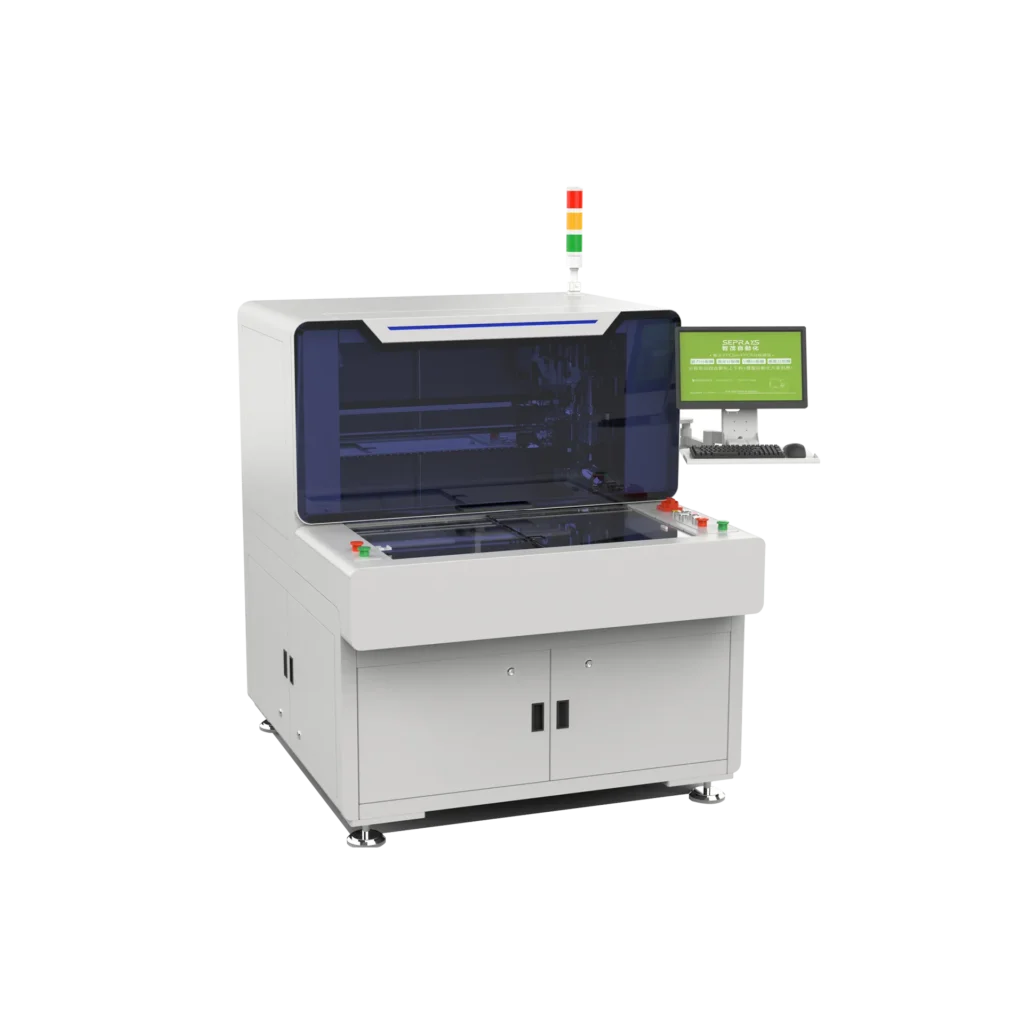

В ZM300NT Offline PCB Milling Depaneling Machine is designed for manufacturers that require stable routing accuracy while protecting delicate PCB assemblies.

Typical application scenarios include:

• Automotive electronic control units
• Medical monitoring equipment
• Industrial automation boards
• Communication modules
• Consumer electronics
• Smart wearable devices

Its combination of high-speed spindle technology, CCD visual positioning, intelligent programming, and stable motion control helps maintain consistent cutting quality across different production batches.

For manufacturers handling multiple product models, offline programming also reduces changeover time and improves equipment utilization.

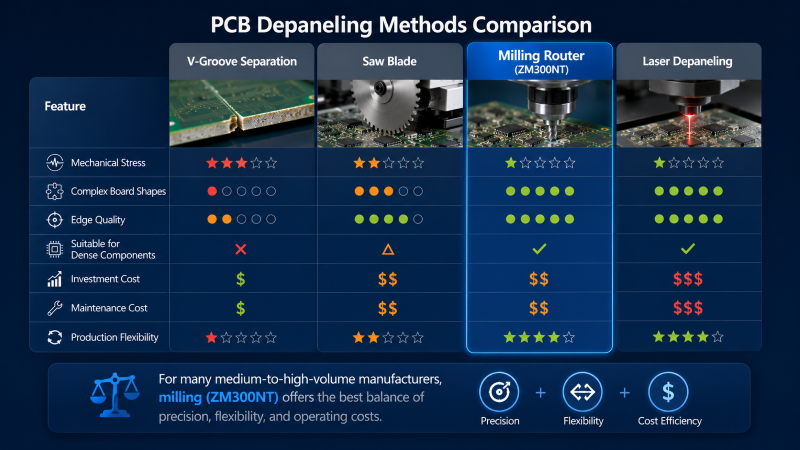

📊 Comparing Common PCB Depaneling Methods

Feature	V-Groove Separation	Saw Blade	Milling Router (ZM300NT)	Laser Depaneling
Mechanical Stress	High	Medium	Low	Very Low
Complex Board Shapes	Limited	Moderate	Excellent	Excellent
Edge Quality	Fair	Good	Excellent	Excellent
Suitable for Dense Components	No	Limited	Yes	Yes
Investment Cost	Low	Medium	Medium	High
Maintenance Cost	Low	Medium	Moderate	High
Production Flexibility	Low	Medium	High	High

There is no universal winner.

The right solution depends on PCB design, production volume, and reliability requirements.

For many medium-to-high-volume manufacturers, milling provides an effective balance among precision, flexibility, and operating costs.

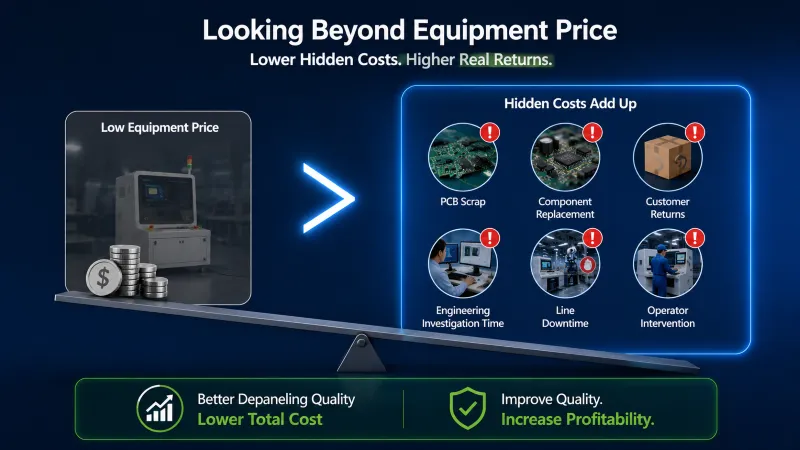

💰 Looking Beyond Equipment Price

One common misconception is that cheaper equipment always lowers production costs.

In reality, the opposite can happen.

Consider the hidden expenses:

• PCB scrap
• Component replacement
• Customer returns
• Engineering investigation time
• Line downtime
• Operator intervention

When these costs are added together, improving depaneling quality often delivers a faster return than expected.

Several manufacturers report that reducing board damage by only a small percentage significantly lowers annual quality costs.

This is particularly true for products with expensive electronic components.

🧩 Practical Experience from Real Production

An electronics manufacturer producing industrial communication controllers experienced recurring failures during functional testing.

Initial investigations focused on SMT placement accuracy and solder paste quality.

Neither was responsible.

Engineers eventually traced the issue to excessive mechanical stress during PCB separation.

The factory evaluated multiple routing solutions before introducing a Seprays ZM300NT into a pilot production line.

After optimizing routing paths and cutting parameters:

• PCB edge quality became more consistent.
• Visible stress marks were reduced.
• Manual rework decreased noticeably.
• Production stability improved over several weeks of monitoring.

Although every factory has different products and process conditions, the project demonstrated how depaneling can directly influence downstream quality.

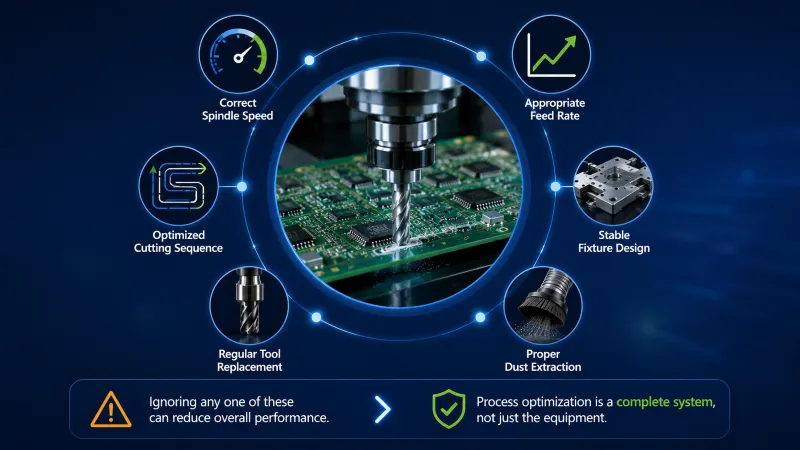

📈 What Engineers Often Overlook

An interesting observation from recent manufacturing projects is that routing accuracy alone does not guarantee good results.

Several additional factors matter:

• Correct spindle speed
• Appropriate feed rate
• Stable fixture design
• Proper dust extraction
• Regular tool replacement
• Optimized cutting sequence

Ignoring any one of these can reduce overall performance.

Process optimization should therefore be viewed as a complete system rather than only selecting better equipment.

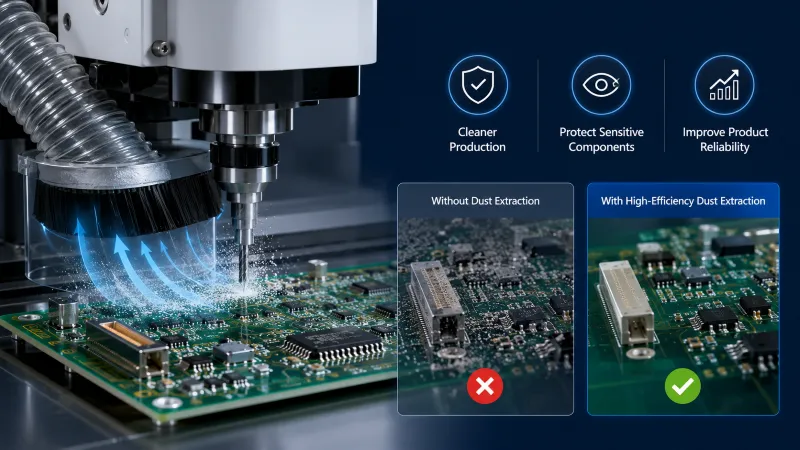

🛡️ Dust Control Is More Important Than Many Expect

Modern PCB assemblies often include exposed connectors, optical modules, sensors, and miniature components.

Routing naturally generates dust.

Without effective extraction, particles may settle on sensitive assemblies or enter downstream processes.

High-efficiency dust collection, therefore, contributes not only to cleaner production but also to more reliable electronic products.

Many factories now evaluate depaneling equipment partly based on dust management rather than cutting speed alone.

🌍 Choosing the Right Solution Depends on Your Product

There is no perfect depaneling technology.

Instead, manufacturers should evaluate several practical questions:

• How close are components to the routing line?
• What level of reliability is required?
• How many PCB models are produced each month?
• Is automation planned for the future?
• What is the acceptable maintenance budget?

Answering these questions usually leads to a much better equipment decision than comparing purchase prices alone.

💡 Final Thoughts

High-density PCBAs continue to push manufacturing processes toward higher precision and lower mechanical stress.

Depaneling is no longer a simple finishing step.

It directly influences product quality, customer satisfaction, and long-term manufacturing costs.

For manufacturers seeking a balance between routing precision, production flexibility, and operational efficiency, the ZM300NT Offline PCB Milling Depaneling Machine represents a practical solution that aligns with today’s increasingly demanding PCB assembly requirements.
