ZAM100/300 Online Laser Marking Machine

规格

No.	Category	ZAM100	ZAM300
1	Laser Source	CO₂ / Fiber / UV
2	Average Power	5W (CO₂) / 20W (Fiber) / 5W (UV) / 10W (UV)
3	Wavelength	10.6 μm (CO₂) / 1064 nm (Fiber) / 355 nm (UV)
4	Cooling Method	Forced Air Cooling / Water Cooling (for 10W UV)
5	Minimum Line Width	< 0.1 mm
6	Repeat Accuracy	±0.025 mm
7	In/Out Conveyor Speed	0–200 mm/s
8	XY-axis Motion Speed	0–500 mm/s
9	QR Code Size Range	1–1.3 mm × 1–1.3 mm to 6 mm × 6 mm (min. size depends on light source)
10	Supported QR Code Types	QR / DataMatrix
11	XY Platform Travel Range	460 mm × 600 mm	490 mm × 630 mm
12	PCB Size Range	50 mm × 50 mm – 450 mm × 450 mm
13	Board Thickness	0.5 – 4 mm
14	Working Height	900 ± 20 mm
15	Positioning Method	Mechanical Positioning + CCD Camera Positioning

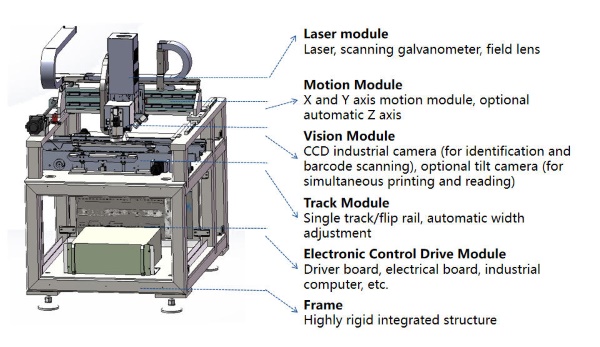

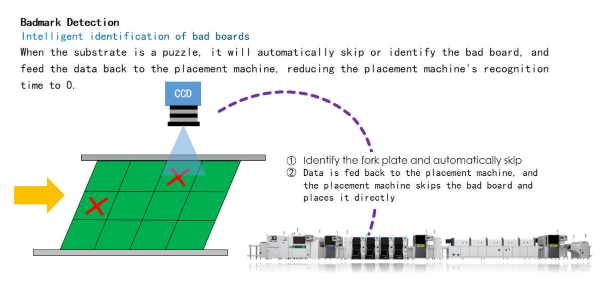

16	Software Functions	Supports visible and invisible laser marking; QR code reading (2–6 mm); duplicate prevention and code replacement; BadMark detection; customizable coding rules
17	Optional Features	Simultaneous Marking & Reading, Reserved Hardware Structure / QR Code Grading
18	Power Consumption	220 VAC, 50/60 Hz, 2000 VA
19	Machine Weight	700 kg
20	Dimensions (L × W × H)	1410 × 975 × 1550 mm	1500 × 1064 × 1550 mm

The ZAM100/300 Online Laser Marking Machine is a high-precision marking solution designed for SMT production lines. It provides reliable, automated marking of one-dimensional codes, QR codes, text, and graphics on PCBs and related substrates, ensuring traceability and error-free identification throughout the manufacturing process.

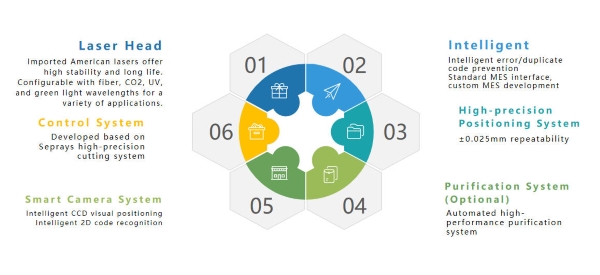

⚡ Advanced Laser Technology

Supports multiple laser sources: fibre, CO₂, UV, and green laser
High stability, long service life, and consistent marking quality
Capable of marking on PCB white oil boards, green oil boards, and CM slots

🔄 Flexible Integration

Fully compatible with the SMEMA interface for inline operation
Can also function as an offline workstation with an auto loader/unloader

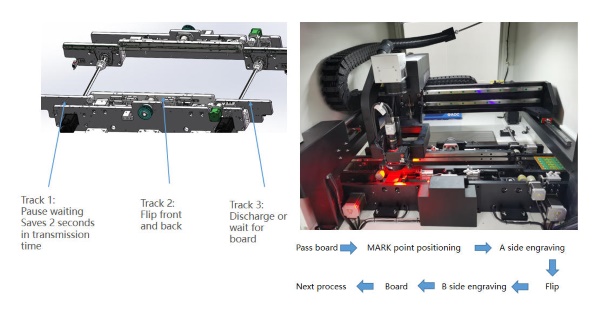

选配 flip mechanism for double-sided marking in one process
Multiple conveyor layouts (single-track, dual-track, flip-track) to suit different line setups

📷 Intelligent Vision & Verification

CCD industrial camera for code recognition and barcode verification
Optional tilted camera for “mark and read” in one step
2D code checking to confirm accuracy against source data
Bad mark detection to automatically skip defective boards and optimise production efficiency

🛠 Smart Features

Parameter optimisation matrix reduces setup time for different materials
Automated error-proofing to prevent duplicate or incorrect codes
Supports integration with MES systems for intelligent traceability
Optional high-performance fume purification system for a clean working environment

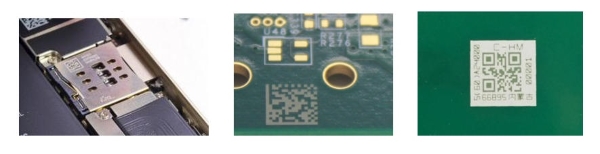

🌍 Industrial Applications

Widely used across industries such as:

Automotive electronics
Telecommunications
Consumer electronics
Medical devices
Energy and storage solutions

The ZAM100/300 Online Laser Marking Machine combines accuracy, automation, and smart control, making it the ideal choice for manufacturers who need efficient marking, product tracking, and quality assurance in high-volume SMT production.
